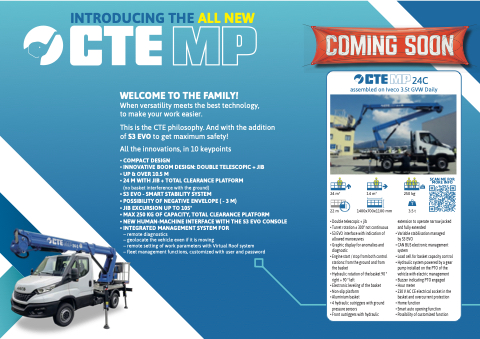

Page 6 - CTE BROCHURE_UK 002 June 2021

INTRODUCING THE ALL NEW
WELCOME TO THE FAMILY!
When versatility meets the best technology, to make your work easier.
This is the CTE philosophy. And with the addition of S3 EVO to get maximum safety!
All the innovations, in 10 keypoints
• COMPACT DESIGN
• INNOVATIVE BOOM DESIGN: DOUBLE TELESCOPIC + JIB
• UP & OVER 10.5 M
• 24 M WITH JIB + TOTAL CLEARANCE PLATFORM
(no basket interference with the ground)
• S3 EVO - SMART STABILITY SYSTEM
• POSSIBILITY OF NEGATIVE ENVELOPE ( - 3 M)
• JIB EXCURSION UP TO 105°
• MAX 250 KG OF CAPACITY, TOTAL CLEARANCE PLATFORM
• NEW HUMAN-MACHINE INTERFACE WITH THE S3 EVO CONSOLE
• INTEGRATED MANAGEMENT SYSTEM FOR
– remote diagnostics
– geolocate the vehicle even if it is moving
– remote setting of work parameters with Virtual Roof system
– fleet management functions, customized with user and password
24C assembled on Iveco 3.5t GVW Daily
24 m*
22 m
14 m*
1400x700x1100 mm
250 kg
3.5 t
• Double telescopic + jib
• Turret rotation ± 300° not continuous • S3 EVO interface with indication of
allowed manoeuvres
• Graphic display for anomalies and
diagnostic
• Engine start / stop from both control
stations: from the ground and from
the basket
• Hydraulic rotation of the basket 90 °
right + 90 ° left
• Electronic leveling of the basket
• Non-slip platform
• Aluminium basket
• 4 hydraulic outriggers with ground
pressure sensors
• Front outriggers with hydraulic
extension to operate narrow jacked
and fully extended
• Variable stabilisation managed
by S3 EVO
• CAN BUS electronic management
system
• Load cell for basket capacity control • Hydraulic system powered by a gear
pump installed on the PTO of the
vehicle with electric management • Buzzer indicating PTO engaged
• Hour meter
• 230 V AC CE electrical socket in the
basket and overcurrent protection • Home function
• Smart auto opening function
• Possibility of customized function
