Page 1002 - Chemistry--atom first
P. 1002

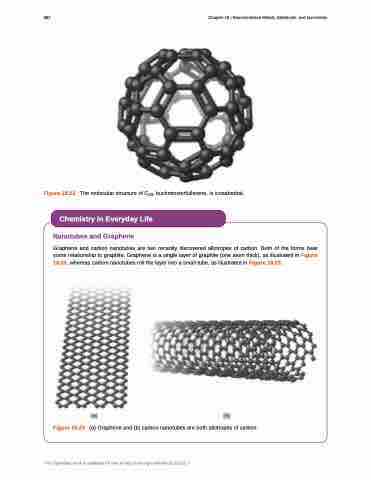

992 Chapter 18 | Representative Metals, Metalloids, and Nonmetals
Figure 18.22 The molecular structure of C60, buckminsterfullerene, is icosahedral. Chemistry in Everyday Life
Nanotubes and Graphene
Graphene and carbon nanotubes are two recently discovered allotropes of carbon. Both of the forms bear some relationship to graphite. Graphene is a single layer of graphite (one atom thick), as illustrated in Figure 18.23, whereas carbon nanotubes roll the layer into a small tube, as illustrated in Figure 18.23.
Figure 18.23 (a) Graphene and (b) carbon nanotubes are both allotropes of carbon.
This OpenStax book is available for free at http://cnx.org/content/col12012/1.7
