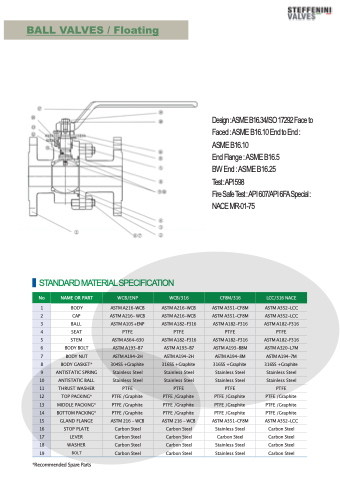

STANDARD MATERIAL SPECIFICATION
No
1
NAME OR PART
WCB/ENP
WCB/316
Design:ASMEB16.34/ISO17292Face to Faced : ASME B16.10 End to End : ASME B16.10
End Flange : ASME B16.5
BW End : ASME B16.25
Test:API598
Fire Safe Test : API 607/API 6FA Special : NACE MR-01-75
CF8M/316
LCC/316 NACE
BODY
CAP
BALL
SEAT
STEM
BODY BOLT
BODY NUT
BODY GASKET*
ANTISTATIC SPRING
ANTISTATIC BALL
THRUST WASHER
TOP PACKING*
MIDDLE PACKING*
BOTTOM PACKING*
GLAND FLANGE
STOP PLATE
LEVER
WASHER
BOLT
ASTM A216-WCB
ASTM A216- WCB
ASTM A105+ENP
PTFE
ASTM A564-630
ASTM A193-B7
ASTM A194-2H
304SS +Graphite
Stainless Steel
Stainless Steel
PTFE
PTFE /Graphite
PTFE /Graphite
PTFE /Graphite
ASTM 216 - WCB
Carbon Steel
Carbon Steel
Carbon Steel
Carbon Steel
ASTM A216-WCB
ASTM A216-WCB
ASTM A182-F316
PTFE
ASTM A182-F316
ASTM A193-B7
ASTM A194-2H
316SS +Graphite
Stainless Steel
Stainless Steel
PTFE
PTFE /Graphite
PTFE /Graphite
PTFE /Graphite
ASTM 216 - WCB
Carbon Steel
Carbon Steel
Carbon Steel
Carbon Steel
ASTM A351-CF8M
ASTM A351-CF8M
ASTM A182-F316
PTFE
ASTM A182-F316
ASTM A193-B8M
ASTM A194-8M
316SS +Graphite
Stainless Steel
Stainless Steel
PTFE
PTFE /Graphite
PTFE /Graphite
PTFE /Graphite
ASTM A351-CF8M
Stainless Steel
Carbon Steel
Stainless Steel
Stainless Steel
ASTM A352-LCC
ASTM A352-LCC
ASTM A182-F316
PTFE
ASTM A182-F316
ASTM A320-L7M
ASTM A194-7M
316SS +Graphite
Stainless Steel
Stainless Steel
PTFE
PTFE /Graphite
PTFE /Graphite
PTFE /Graphite
ASTM A352-LCC
Carbon Steel
Carbon Steel
Carbon Steel
Carbon Steel
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
*Recommended Spare Parts
