P. 9

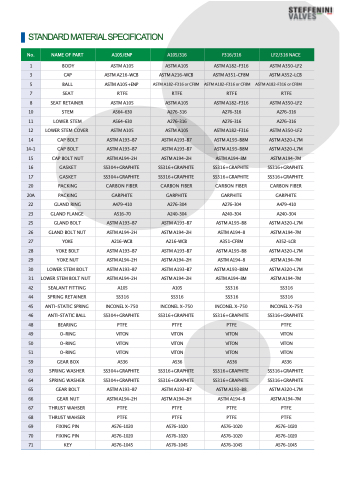

STANDARD MATERIAL SPECIFICATION
No.
1
3
NAME OF PART
A105/ENP
A105/316
F316/316
LF2/316 NACE
5
7
8
10
11
12
14
14-1
15
16
17
20
20A
22
23
25
26
27
28
29
30
31
42
44
45
46
48
49
50
51
59
63
64
65
66
67
68
69
70
71
BODY
CAP
BALL
SEAT
SEAT RETAINER
STEM
LOWER STEM
LOWER STEM COVER
CAP BOLT
CAP BOLT
CAP BOLT NUT
GASKET
GASKET
PACKING
PACKING
GLAND RING
GLAND FLANGE
GLAND BOLT
GLAND BOLT NUT
YOKE
YOKE BOLT
YOKE NUT
LOWER STEM BOLT
LOWER STEM BOLT NUT
SEALANT FITTING
SPRING RETAINER
ANTI-STATIC SPRING
ANTI-STATIC BALL
BEARING
O-RING
O-RING
O-RING
GEAR BOX
SPRING WASHER
SPRING WASHER
GEAR BOLT
GEAR NUT
THRUST WAHSER
THRUST WAHSER
FIXING PIN
FIXING PIN
ASTM A105
ASTM A216-WCB
ASTM A105+ENP
RTFE
ASTM A105
A564-630
A564-630
ASTM A105
ASTM A193-B7
ASTM A193-B7
ASTM A194-2H
SS304+GRAPHITE
SS304+GRAPHITE
CARBON FIBER
GARPHITE
A479-410
A516-70
ASTM A193-B7
ASTM A194-2H
A216-WCB
ASTM A193-B7
ASTM A194-2H
ASTM A193-B7
ASTM A194-2H
A105
SS316
INCONEL X-750
SS304+GRAPHITE
PTFE
VITON
VITON
VITON
A536
SS304+GRAPHITE
SS304+GRAPHITE
ASTM A193-B7
ASTM A194-2H
PTFE
PTFE
A576-1020
A576-1020
ASTM A105
ASTM A216-WCB
ASTM A182-F316 or CF8M
RTFE
ASTM A105
A276-316
A276-316
ASTM A105
ASTM A193-B7
ASTM A193-B7
ASTM A194-2H
SS316+GRAPHITE
SS316+GRAPHITE
CARBON FIBER
GARPHITE
A276-304
A240-304
ASTM A193-B7
ASTM A194-2H
A216-WCB
ASTM A193-B7
ASTM A194-2H
ASTM A193-B7
ASTM A194-2H
A105
SS316
INCONEL X-750
SS316+GRAPHITE
PTFE
VITON
VITON
VITON
A536
SS316+GRAPHITE
SS316+GRAPHITE
ASTM A193-B7
ASTM A194-2H
PTFE
PTFE
A576-1020
A576-1020
ASTM A182-F316
ASTM A351-CF8M
ASTM A182-F316 or CF8M
RTFE
ASTM A182-F316
A276-316
A276-316
ASTM A182-F316
ASTM A193-B8M
ASTM A193-B8M
ASTM A194-8M
SS316+GRAPHITE
SS316+GRAPHITE
CARBON FIBER
GARPHITE
A276-304
A240-304
ASTM A193-B8
ASTM A194-8
A351-CF8M
ASTM A193-B8
ASTM A194-8
ASTM A193-B8M
ASTM A194-8M
SS316
SS316
INCONEL X-750
SS316+GRAPHITE
PTFE
VITON
VITON
VITON
A536
SS316+GRAPHITE
SS316+GRAPHITE
ASTM A193-B8
ASTM A194-8
PTFE
PTFE
A576-1020
A576-1020
ASTM A350-LF2
ASTM A352-LCB
ASTM A182-F316 or CF8M
RTFE
ASTM A350-LF2
A276-316
A276-316
ASTM A350-LF2
ASTM A320-L7M
ASTM A320-L7M
ASTM A194-7M
SS316+GRAPHITE
SS316+GRAPHITE
CARBON FIBER
GARPHITE
A479-410
A240-304
ASTM A320-L7M
ASTM A194-7M
A352-LCB
ASTM A320-L7M
ASTM A194-7M
ASTM A320-L7M
ASTM A194-7M
SS316
SS316
INCONEL X-750
SS316+GRAPHITE
PTFE
VITON
VITON
VITON
A536
SS316+GRAPHITE
SS316+GRAPHITE
ASTM A320-L7M
ASTM A194-7M
PTFE
PTFE
A576-1020
A576-1020
KEY
A576-1045
A576-1045
A576-1045
A576-1045
