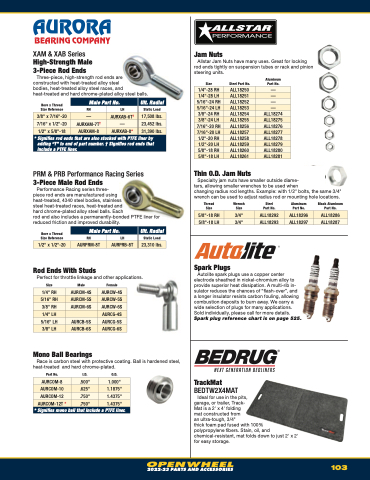

Page 105 - 2022-23 Auto Performance Open Wheel Catalog

XAM & XAB Series
High-Strength Male
3-Piece Rod Ends
Three-piece, high-strength rod ends are constructed with heat-treated alloy steel
bodies, heat-treated alloy steel races, and heat-treated and hard chrome-plated alloy steel balls.
Bore x Thread
Size Reference RH LH Static Load
PRM & PRB Performance Racing Series
3-Piece Male Rod Ends
Performance Racing series three-
piece rod ends are manufactured using
heat-treated, 4340 steel bodies, stainless
steel heat-treated races, heat-treated and
hard chrome-plated alloy steel balls. Each
rod end also includes a permanently-bonded PTFE liner for reduced friction and improved durability.
Jam Nuts
Allstar Jam Nuts have many uses. Great for locking rod ends tightly on suspension tubes or rack and pinion steering units.
Size Steel Part No.
Aluminum Part No.
1/4"-28 RH
ALL18250
—
1/4"-28 LH
ALL18251
—
5/16"-24 RH
ALL18252
—
5/16"-24 LH
ALL18253
—
3/8"-24 RH
ALL18254
ALL18274
3/8"-24 LH
ALL18255
ALL18275
7/16"-20 RH
ALL18256
ALL18276
7/16"-20 LH
ALL18257
ALL18277
1/2"-20 RH
ALL18258
ALL18278
1/2"-20 LH
ALL18259
ALL18279
5/8"-18 RH
ALL18260
ALL18280
5/8"-18 LH
ALL18261
ALL18281
Male Part No.
Ult. Radial
3/8" x 7/16"-20
—
AURXAB-6T†
17,508 lbs.
7/16" x 1/2"-20
AURXAM-7T†
—
23,452 lbs.
1/2" x 5/8"-18
AURXAM-8
AURXAB-8*
31,390 lbs.
* Signifies rod ends that are also stocked with PTFE liner by adding “T” to end of part number. † Signifies rod ends that include a PTFE liner.
Thin O.D. Jam Nuts
Specialty jam nuts have smaller outside diame-
ters, allowing smaller wrenches to be used when
changing radius rod lengths. Example: with 1/2" bolts, the same 3/4" wrench can be used to adjust radius rod or mounting hole locations.
Thread Wrench Size Size
Spark Plugs
Steel Part No.
Aluminum Part No.
Black Aluminum Part No.
5/8"-18 RH
3/4"
ALL18292
ALL18296
ALL18286
5/8"-18 LH
3/4"
ALL18293
ALL18297
ALL18287
Male Part No.
Ult. Radial
Bore x Thread
Size Reference RH LH
Rod Ends With Studs
Perfect for throttle linkage and other applications.
Static Load
1/2" x 1/2"-20
AURPRM-8T
AURPRB-8T
23,310 lbs.
Size Male
Mono Ball Bearings
Female
Autolite spark plugs use a copper center electrode sheathed in nickel-chromium alloy to provide superior heat dissipation. A multi-rib in- sulator reduces the chances of “flash-over”, and
a longer insulator resists carbon fouling, allowing combustion deposits to burn away. We carry a wide selection of plugs for many applications. Sold individually, please call for more details. Spark plug reference chart is on page 525.
TrackMat
BEDTW2X4MAT
Ideal for use in the pits, garage, or trailer, Track- Mat is a 2' x 4' folding mat constructed from
an ultra-tough, 3/4"
thick foam pad fused with 100%
polypropylene fibers. Stain, oil, and chemical-resistant, mat folds down to just 2' x 2' for easy storage.
1/4" RH
AURCM-4S
AURCW-4S
5/16" RH
AURCM-5S
AURCW-5S
3/8" RH
AURCM-6S
AURCW-6S
1/4" LH
AURCG-4S
5/16" LH
AURCB-5S
AURCG-5S
3/8" LH
AURCB-6S
AURCG-6S
Race is carbon steel with protective coating. Ball is hardened steel, heat-treated and hard chrome-plated.
Part No.
I.D. O.D.
AURCOM-8
.500"
1.000"
AURCOM-10
.625"
1.1875"
AURCOM-12
.750"
1.4375"
AURCOM-12T *
.750"
1.4375"
* Signifies mono ball that include a PTFE liner.
