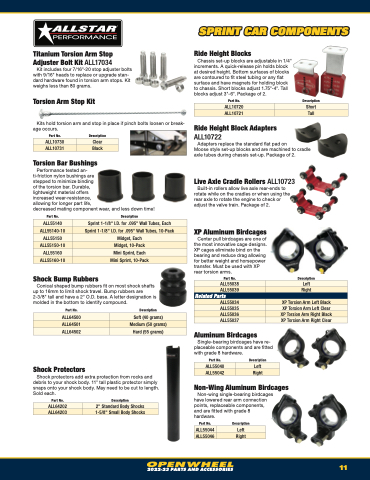

Page 13 - 2022-23 Auto Performance Open Wheel Catalog

SPRINT CAR COMPONENTS
Titanium Torsion Arm Stop
Adjuster Bolt Kit ALL17034
Kit includes four 7/16"-20 stop adjuster bolts
with 9/16" heads to replace or upgrade stan- dard hardware found in torsion arm stops. Kit weighs less than 80 grams.
Torsion Arm Stop Kit
Kits hold torsion arm and stop in place if pinch bolts loosen or break- age occurs.
Ride Height Blocks
Chassis set-up blocks are adjustable in 1/4" increments. A quick-release pin holds block at desired height. Bottom surfaces of blocks are contoured to fit steel tubing or any flat surface and have magnets for holding block to chassis. Short blocks adjust 1.75"-4". Tall blocks adjust 3"-6". Package of 2.
Part No.
Ride Height Block Adapters
ALL10722
Description
ALL10720
Short
ALL10721
Tall
Part No.
Description
ALL10730
Clear
ALL10731
Black
Conical shaped bump rubbers fit on most shock shafts up to 16mm to limit shock travel. Bump rubbers are 2-3/8" tall and have a 2" O.D. base. A letter designation is molded in the bottom to identify compound.
Adapters replace the standard flat pad on
Moose style set-up blocks and are machined to cradle axle tubes during chassis set-up. Package of 2.
Torsion Bar Bushings
Performance tested an-
ti-friction nylon bushings are
stepped to minimize binding
of the torsion bar. Durable,
lightweight material offers
increased wear-resistance,
allowing for longer part life,
decreased mating component wear, and less down time!
Live Axle Cradle Rollers ALL10723 Built-in rollers allow live axle rear-ends to
rotate while on the cradles or when using the rear axle to rotate the engine to check or adjust the valve train. Package of 2.
XP Aluminum Birdcages
Center pull birdcages are one of the most innovative cage designs. XP cages eliminate bind on the bearing and reduce drag allowing for better weight and horsepower transfer. Must be used with XP rear torsion arms.
Part No.
Related Parts
Aluminum Birdcages
Single-bearing birdcages have re- placeable components and are fitted with grade 8 hardware.
Part No. Description
Non-Wing Aluminum Birdcages
Non-wing single-bearing birdcages have lowered rear arm connection points, replaceable components, and are fitted with grade 8
hardware.
Part No. Description
Part No.
Shock Bump Rubbers
Description
ALL55140
Sprint 1-1/8" I.D. for .095" Wall Tubes, Each
ALL55140-10
Sprint 1-1/8" I.D. for .095" Wall Tubes, 10-Pack
ALL55150
Midget, Each
ALL55150-10
Midget, 10-Pack
ALL55160
Mini Sprint, Each
ALL55160-10
Mini Sprint, 10-Pack
Description
ALL55038
Left
ALL55039
Right
ALL55034
XP Torsion Arm Left Black
ALL55035
XP Torsion Arm Left Clear
ALL55036
XP Torsion Arm Right Black
ALL55037
XP Torsion Arm Right Clear
Part No.
Shock Protectors
Description
ALL64500
Soft (40 grams)
ALL64501
Medium (50 grams)
ALL64502
Hard (55 grams)
ALL55040
Left
ALL55042
Right
Shock protectors add extra protection from rocks and debris to your shock body. 11" tall plastic protector simply snaps onto your shock body. May need to be cut to length. Sold each.
Part No.
Description
ALL64202
2" Standard Body Shocks
ALL64203
1-5/8" Small Body Shocks
ALL55044
Left
ALL55046
Right
2022-23 PARTS AND ACCESSORIES
11
