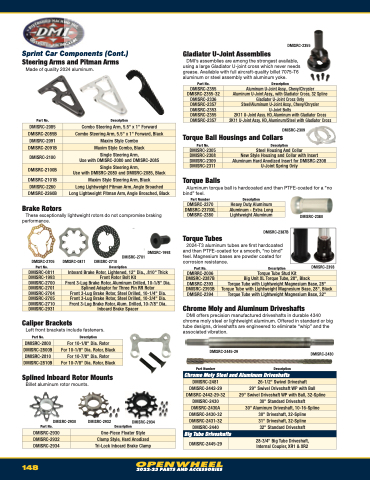

Page 150 - 2022-23 Auto Performance Open Wheel Catalog

Sprint Car Components (Cont.)
Steering Arms and Pitman Arms
Gladiator U-Joint Assemblies
DMI’s assemblies are among the strongest available, using a large Gladiator U-joint cross which never needs grease. Available with full aircraft-quality billet 7075-T6 aluminum or steel assembly with aluminum yoke.
Part No. Description
DMISRC-2309
Torque Ball Housings and Collars
Part No. Description
Torque Balls
Aluminum torque ball is hardcoated and then PTFE-coated for a “no bind” feel.
Made of quality 2024 aluminum.
Part No.
Description
DMISRC-2355
DMISRC-2355
Aluminum U-Joint Assy., Chevy/Chrysler
DMISRC-2355-32
Aluminum U-Joint Assy., with Gladiator Cross, 32 Spline
DMISRC-2336
Gladiator U-Joint Cross Only
DMISRC-2357
Steel/Aluminum U-Joint Assy., Chevy/Chrysler
DMISRC-2353
U-Joint Bolts
DMISRC-2355
2K11 U-Joint Assy. HD, Aluminum with Gladiator Cross
DMISRC-2357
2K11 U-Joint Assy. HD, Aluminum/Steel with Gladiator Cross
DMISRC-2085
Combo Steering Arm, 5.5" x 1" Forward
DMISRC-2085B
Combo Steering Arm, 5.5" x 1" Forward, Black
DMISRC-2091
Maxim Style Combo
DMISRC-2091B
Maxim Style Combo, Black
DMISRC-2100
Single Steering Arm,
Use with DMISRC-2080 and DMISRC-2085
DMISRC-2100B
Single Steering Arm,
Use with DMISRC-2080 and DMISRC-2085, Black
DMISRC-2101B
Maxim Style Steering Arm, Black
DMISRC-2260
Long Lightweight Pitman Arm, Angle Broached
DMISRC-2260B
Long Lightweight Pitman Arm, Angle Broached, Black
DMISRC-2305
Steel Housing And Collar
DMISRC-2308
New Style Housing and Collar with Insert
DMISRC-2309
Aluminum Hard Anodized Insert for DMISRC-2308
DMISRC-2311
U-Joint Spring Only
DMISRC-2370
Heavy Duty Aluminum
Brake Rotors
Part Number
DMISRC-2370XL
Torque Tubes
Description
Aluminum - Extra Long
DMISRC-2387B
DMISRC-2380
Lightweight Aluminum
These exceptionally lightweight rotors do not compromise braking performance.
DMISRC-2380
148
2022-23 PARTS AND ACCESSORIES
DMISRC-2705
Part No.
DMISRC-0811
DMISRC-2710
DMISRC-1993 DMISRC-2701
2024-T3 aluminum tubes are first hardcoated and then PTFE-coated for a smooth, “no bind” feel. Magnesium bases are powder coated for corrosion resistance.
Part No.
Description
Description
Part No. Description DMISRC-2393
Chrome Moly and Aluminum Driveshafts
DMI offers precision manufactured driveshafts in durable 4340 chrome moly steel or lightweight aluminum. Offered in standard or big tube designs, driveshafts are engineered to eliminate “whip” and the associated vibration.
DMISRC-0811
Inboard Brake Rotor, Lightened, 12" Dia., .810" Thick
DMISRC-1993
Front Rotor Bolt Kit
DMISRC-2700
Front 3-Lug Brake Rotor, Aluminum Drilled, 10-1/8" Dia.
DMISRC-2701
Splined Adaptor for Three Pin RR Rotor
DMISRC-2704
Front 3-Lug Brake Rotor, Steel Drilled, 10-1/4" Dia.
DMISRC-2705
Front 3-Lug Brake Rotor, Steel Drilled, 10-3/4" Dia.
DMISRC-2710
Front 3-Lug Brake Rotor, Alum. Drilled, 10-7/8" Dia.
DMISRC-2931
Inboard Brake Spacer
DMIRRC-2006
Torque Tube Stud Kit
DMISRC-2387B
Big Unit XL Torque Tube, 28", Black
DMISRC-2393
Torque Tube with Lightweight Magnesium Base, 28"
DMISRC-2393B
Torque Tube with Lightweight Magnesium Base, 28", Black
DMISRC-2394
Torque Tube with Lightweight Magnesium Base, 32"
Caliper Brackets
Left front brackets include fasteners.
Part No. Description
Splined Inboard Rotor Mounts
Billet aluminum rotor mounts.
DMISRC-2445-29
Part Number
DMISRC-2430
DMISRC-2800
For 10-1/8" Dia. Rotor
DMISRC-2800B
For 10-1/8" Dia. Rotor, Black
DMISRC-2810
For 10-7/8" Dia. Rotor
DMISRC-2810B
For 10-7/8" Dia. Rotor, Black
Description
Chrome Moly Steel and Aluminum Driveshafts
DMISRC-2481
26-1/2" Swivel Driveshaft
DMISRC-2442-29
29" Swivel Driveshaft WP with Ball
DMISRC-2442-29-32
29" Swivel Driveshaft WP with Ball, 32-Spline
DMISRC-2430
30" Standard Driveshaft
DMISRC-2430A
30" Aluminum Driveshaft, 10-16-Spline
DMISRC-2430-32
30" Driveshaft, 32-Spline
DMISRC-2431-32
31" Driveshaft, 32-Spline
DMISRC-2440
32" Standard Driveshaft
Big Tube Driveshafts
DMISRC-2445-29
28-3/4" Big Tube Driveshaft, Internal Coupler, XR1 & XR2
DMISRC-2930 DMISRC-2932
DMISRC-2934
DMISRC-2930
One-Piece Floater Style
DMISRC-2932
Clamp Style, Hard Anodized
DMISRC-2934
Tri-Lock Inboard Brake Clamp
