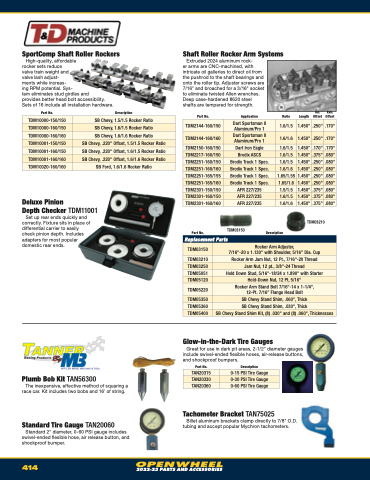

Page 416 - 2022-23 Auto Performance Open Wheel Catalog

SportComp Shaft Roller Rockers
Shaft Roller Rocker Arm Systems
High-quality, affordable rocker sets reduce
valve train weight and valve lash adjust-
ments while increas-
ing RPM potential. Sys-
tem eliminates stud girdles and
provides better head bolt accessibility. Sets of 16 include all installation hardware.
Part No.
Extruded 2024 aluminum rock-
er arms are CNC-machined, with intricate oil galleries to direct oil from the pushrod to the shaft bearings and onto the roller tip. Adjuster screws are 7/16" and broached for a 3/16" socket to eliminate twisted Allen wrenches. Deep case-hardened 8620 steel shafts are tempered for strength.
Description
Part No.
Application
Ratio
Int. Exh.
Length
Offset
Offset
TDM10000-150/150
SB Chevy, 1.5/1.5 Rocker Ratio
TDM10000-160/150
SB Chevy, 1.6/1.5 Rocker Ratio
TDM10000-160/160
SB Chevy, 1.6/1.6 Rocker Ratio
TDM10001-150/150
SB Chevy, .220" Offset, 1.5/1.5 Rocker Ratio
TDM10001-160/150
SB Chevy, .220" Offset, 1.6/1.5 Rocker Ratio
TDM10001-160/160
SB Chevy, .220" Offset, 1.6/1.6 Rocker Ratio
TDM10020-160/160
SB Ford, 1.6/1.6 Rocker Ratio
TDM2144-160/150
Dart Sportsman II Aluminum/Pro 1
1.6/1.5
1.450"
.250"
.170"
TDM2144-160/160
Dart Sportsman II Aluminum/Pro 1
1.6/1.6
1.450"
.250"
.170"
TDM2150-160/150
Dart Iron Eagle
1.6/1.5
1.450"
.170"
.170"
TDM2217-160/150
Brodix ASCS
1.6/1.5
1.450"
.375"
.080"
TDM2251-160/150
Brodix Track 1 Spec.
1.6/1.5
1.450"
.250"
.080"
TDM2251-160/160
Brodix Track 1 Spec.
1.6/1.6
1.450"
.250"
.080"
TDM2251-165/155
Brodix Track 1 Spec.
1.65/1.55
1.450"
.250"
.080"
TDM2251-165/160
Brodix Track 1 Spec.
1.65/1.6
1.450"
.250"
.080"
TDM2301-150/150
AFR 227/235
1.5/1.5
1.450"
.375"
.080"
TDM2301-160/150
AFR 227/235
1.6/1.5
1.450"
.375"
.080"
TDM2301-160/160
AFR 227/235
1.6/1.6
1.450"
.375"
.080"
Deluxe Pinion
Depth Checker TDM11001 Set up rear ends quickly and
correctly. Fixture sits in place of differential carrier to easily check pinion depth. Includes adapters for most popular domestic rear ends.
TDM03210
Part No.
TDM03150
Description
Replacement Parts
TDM03150
Rocker Arm Adjuster,
7/16"-20 x 1.130" with Shoulder, 5/16" Dia. Cup
TDM03210
Rocker Arm Jam Nut, 12 Pt., 7/16"-20 Thread
TDM03250
Jam Nut, 12 pt., 3/8"-24 Thread
TDM05051
Hold Down Stud, 5/16"-18/24 x 1.890" with Starter
TDM05120
Hold-Down Nut, 12 Pt, 5/16"
TDM05220
Rocker Arm Stand Bolt 7/16"-14 x 1-1/4", 12-Pt. 7/16” Flange Head Bolt
TDM05350
SB Chevy Stand Shim, .060", Thick
TDM05360
SB Chevy Stand Shim, .030", Thick
TDM05400
SB Chevy Stand Shim Kit, (8) .030" and (8) .060", Thicknesses
TAN20315
0-15 PSI Tire Gauge
TAN20330
0-30 PSI Tire Gauge
TAN20360
0-60 PSI Tire Gauge
Plumb Bob Kit TAN56300
The inexpensive, effective method of squaring a
race car. Kit includes two bobs and 16' of string.
Standard Tire Gauge TAN20060 Standard 2" diameter, 0-60 PSI gauge includes
swivel-ended flexible hose, air release button, and shockproof bumper.
Glow-in-the-Dark Tire Gauges
Great for use in dark pit areas, 2-1/2" diameter gauges include swivel-ended flexible hoses, air-release buttons, and shockproof bumpers.
Part No. Description
Tachometer Bracket TAN75025
Billet aluminum brackets clamp directly to 7/8" O.D.
tubing and accept popular Mychron tachometers.
414
2022-23 PARTS AND ACCESSORIES
