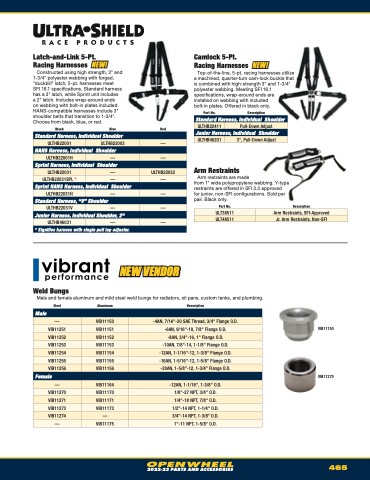

Page 467 - 2022-23 Auto Performance Open Wheel Catalog

Latch-and-Link 5-Pt.
Racing Harnesses NEW! Constructed using high strength, 3" and
1-3/4" polyester webbing with forged, "duckbill" latch, 5-pt. harnesses meet SFI 16.1 specifications. Standard harness has a 3" latch, while Sprint unit includes a 2" latch. Includes wrap-around ends
on webbing with bolt-in plates included. HANS-compatible harnesses include 3" shoulder belts that transition to 1-3/4". Choose from black, blue, or red.
Camlock 5-Pt.
Racing Harnesses NEW! Top-of-the-line, 5-pt. racing harnesses utilize
a machined, quarter-turn cam-lock buckle that is combined with high-strength 3" and 1-3/4" polyester webbing. Meeting SFI 16.1 specifications, wrap-around ends are
installed on webbing with included bolt-in plates. Offered in black only.
Part No.
Arm Restraints
Description
Standard Harness, Individual Shoulder
ULTHB22411
Pull-Down Adjust
Junior Harness, Individual Shoulder
ULTHB46201
3", Pull-Down Adjust
Black
Blue Red
Standard Harness, Individual Shoulder
ULTHB22001
ULTHB22003
—
HANS Harness, Individual Shoulder
ULTHB22001H
—
—
Sprint Harness, Individual Shoulder
ULTHB22031
—
ULTHB22032
ULTHB22031SPL *
—
—
Sprint HANS Harness, Individual Shoulder
ULTHB22031H
—
—
Standard Harness, “V” Shoulder
ULTHB22031V
—
—
Junior Harness, Individual Shoulder, 2"
ULTHB46031
—
—
* Signifies harness with single pull lap adjuster.
Arm restraints are made
from 1" wide polypropylene webbing. Y-type restraints are offered in SFI 3.3 approved
for junior, non-SFI configurations. Sold per pair. Black only.
Part No.
Description
ULT38511
Arm Restraints, SFI-Approved
ULT48511
Jr. Arm Restraints, Non-SFI
Weld Bungs
NEW VENDOR
Male and female aluminum and mild steel weld bungs for radiators, oil pans, custom tanks, and plumbing.
Steel Aluminum Description
Male
—
VIB11150
-4AN, 7/16"-20 SAE Thread, 3/4" Flange O.D.
VIB11251
VIB11151
-6AN, 9/16"-18, 7/8" Flange O.D.
VIB11252
VIB11152
-8AN, 3/4"-16, 1" Flange O.D.
VIB11253
VIB11153
-10AN, 7/8"-14, 1-1/8" Flange O.D.
VIB11254
VIB11154
-12AN, 1-1/16"-12, 1-3/8" Flange O.D.
VIB11255
VIB11155
-16AN, 1-5/16"-12, 1-5/8" Flange O.D.
VIB11256
VIB11156
-20AN, 1-5/8”-12, 1-3/4” Flange O.D.
Female
—
VIB11164
-12AN, 1-1/16", 1-3/8" O.D.
VIB11270
VIB11170
1/8"-27 NPT, 3/4" O.D.
VIB11271
VIB11171
1/4"-18 NPT, 7/8" O.D.
VIB11273
VIB11173
1/2"-14 NPT, 1-1/4" O.D.
VIB11274
—
3/4"-14 NPT, 1-3/8” O.D.
—
VIB11175
1"-11 NPT, 1-5/8" O.D.
VIB11150
VIB11270
2022-23 PARTS AND ACCESSORIES
465
