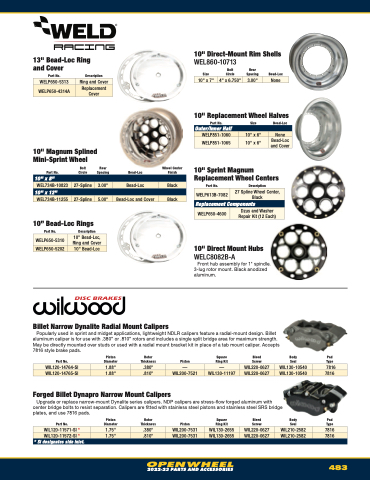

Page 485 - 2022-23 Auto Performance Open Wheel Catalog

13" Bead-Loc Ring and Cover
10" Direct-Mount Rim Shells
WEL860-10713
Bolt Rear
Size Circle Spacing Bead-Loc
10" Replacement Wheel Halves
Part No. Size Bead-Loc
Outer/Inner Half
10" Sprint Magnum Replacement Wheel Centers
Part No. Description
Replacement Components
10" Direct Mount Hubs
WELC8082B-A
Front hub assembly for 1" spindle. 3-lug rotor mount. Black anodized aluminum.
Part No.
Description
10" x 7"
4" x 6.750"
3.00"
None
WELP650-5313
Ring and Cover
WELP650-4314A
Replacement Cover
WELP851-1060
10" x 6"
None
WELP851-1065
10" x 6"
Bead-Loc and Cover
10" Magnum Splined Mini-Sprint Wheel
Part No.
Bolt Circle
Rear Spacing
Bead-Loc
Wheel Center Finish
10" x 8"
WEL734B-10823
27-Spline
3.00"
Bead-Loc
Black
10" x 12"
WEL734B-11255
27-Spline
5.00"
Bead-Loc and Cover
Black
WELP613B-7082
27 Spline Wheel Center, Black
WELP650-4600
Dzus and Washer Repair Kit (12 Each)
10” Bead-Loc Rings
Part No.
Description
WELP650-5310
10" Bead-Loc, Ring and Cover
WELP650-5202
10" Bead-Loc
Billet Narrow Dynalite Radial Mount Calipers
Popularly used in sprint and midget applications, lightweight NDLR calipers feature a radial-mount design. Billet aluminum caliper is for use with .380” or .810” rotors and includes a single split bridge area for maximum strength. May be directly mounted over studs or used with a radial mount bracket kit in place of a tab mount caliper. Accepts 7816 style brake pads.
Piston Rotor Square Bleed Body Pad Part No. Diameter Thickness Piston Ring Kit Screw Seal Type
Forged Billet Dynapro Narrow Mount Calipers
Upgrade or replace narrow-mount Dynalite series calipers. NDP calipers are stress-flow forged aluminum with center bridge bolts to resist separation. Calipers are fitted with stainless steel pistons and stainless steel SRS bridge plates, and use 7816 pads.
WIL120-14764-SI
1.88"
.380"
—
—
WIL220-0627
WIL130-10540
7816
WIL120-14765-SI
1.88"
.810"
WIL200-7521
WIL130-11197
WIL220-0627
WIL130-10540
7816
Part No.
Piston Diameter
Rotor Square Thickness Piston Ring Kit
Bleed Body Pad Screw Seal Type
WIL120-11571-SI *
1.75"
.380"
WIL200-7531
WIL130-2655
WIL220-0627
WIL210-2582
7816
WIL120-11572-SI *
1.75"
.810"
WIL200-7531
WIL130-2655
WIL220-0627
WIL210-2582
7816
* SI designates side inlet.
