106 | | | Ventilation | | | 300 / 500 Series | | | Custom Insert Hoods

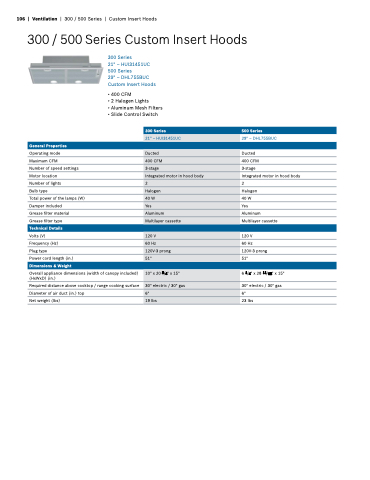

300 / 500 Series Custom Insert Hoods
General Properties
Operating mode
Maximum CFM
Number of speed settings
Motor location
Number of lights
Bulb type
Total power of the lamps (W)
Damper included
Grease filter material
Grease filter type
Technical Details
Volts (V)
Frequency (Hz)
Plug type
Power cord length (in )
Dimensions & Weight
Overall appliance dimensions (width of canopy included) (HxWxD) (in )
)
Required distance above cooktop / range cooking surface Diameter of air duct (in )
top Net weight (lbs)
300 Series 21" – HUI31451UC
Ducted
400 CFM
3-stage
Integrated motor in hood body 2 Halogen
40 W Yes
Aluminum Multilayer cassette
120 V 60 Hz 120V-3 prong 51"
10" x x 20 3/4" x x 15" 30" 30" electric / 30" 30" gas
6"
19 lbs 500 Series 29" – DHL755BUC
Ducted
400 CFM
3-stage
Integrated motor in hood body 2 Halogen
40 W Yes
Aluminum Multilayer cassette
120 V 60 Hz 120V-3 prong 51"
6 6 1/4" x x 28 11/16" x x 15" 30" 30" electric / 30" 30" gas
6"
23 lbs 300 Series 21" – HUI31451UC
500Series 29" – DHL755BUC
Custom Insert Hoods
• 400 CFM
• 2 Halogen
Lights
• Aluminum Mesh Filters • Slide Control Switch
