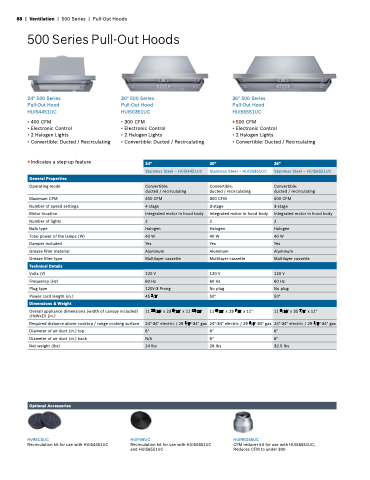

Page 88 - BOS BBY v7

88 | | | Ventilation | | | 500 Series | | | Pull-Out Hoods
500 Series Pull-Out Hoods
24" 500 Series Pull-Out Hood HUI54451UC
• 400 CFM
• Electronic Control
• 2 Halogen Lights
• Convertible: Ducted / Recirculating
+ Indicates a a a step-up feature General Properties
Operating mode
Maximum CFM
Number of speed settings
Motor location
Number of lights
Bulb type
Total power of the lamps (W)
Damper included
Grease filter material
Grease filter type
Technical Details
Volts (V)
Frequency (Hz)
Plug type
Power cord length (in )
Dimensions & Weight
Overall appliance dimensions (width of canopy included) (HxWxD) (in )
)
Required distance above cooktop / range cooking surface Diameter of air duct (in )
top Diameter of air duct (in )
back
Net weight (lbs)
Optional Accessories
HVREC5UC
Recirculation kit for use with HUI54451UC
24" Stainless Steel – HUI54451UC
Convertible: ducted / recirculating
400 CFM
4-stage
Integrated motor in hood body 2 Halogen 40 W Yes
Aluminum
Multilayer cassette
120 V 60 Hz 120V-3 Prong 45 1/2"
11 11 13/16" 13/16" x x 23 9/16" x x 11 11 13/16" 13/16" 24"-34" electric / / 29 1/2"-34" gas 6" N/A
24 lbs 30"
Stainless Steel – HUI50351UC
Convertible: ducted / recirculating
300 CFM
3-stage
Integrated motor in hood body 2 Halogen 40 W Yes
Aluminum
Multilayer cassette
120 V 60 Hz No plug 50"
11 11 9/16" x x 29 7/8" x x 11"
24"-34" electric / / 29 1/2"-34" gas 6" 6" 26 lbs 36"
Stainless Steel – HUI56551UC
Convertible: ducted / recirculating
500 CFM
3-stage
Integrated motor in hood body 2 Halogen 40 W Yes
Aluminum
Multilayer cassette
120 V 60 Hz No plug 50"
11 11 9/16" x x 35 7/8" x x 11"
24"-34" electric / / 29 1/2"-34" gas 6" 6" 32 5 lbs 30"
500 Series Pull-Out Hood HUI50351UC
• 300 CFM
• Electronic Control
• 2 Halogen Lights
• Convertible: Ducted / Recirculating
36"
500 Series Pull-Out Hood HUI56551UC
+500 CFM
• Electronic Control
• 2 Halogen Lights
• Convertible: Ducted / Recirculating
HUIF06UC
Recirculation kit for use with HUI50351UC
and HUI56551UC
HUIRED56UC
CFM
CFM
reducer kit for use with HUI56551UC
Reduces CFM
CFM
to under 300
