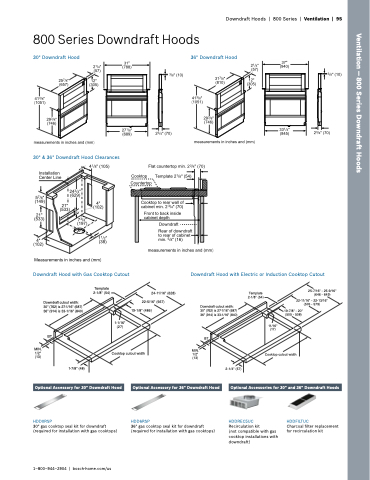

Page 95 - BOS BBY v7

Downdraft Hoods
| | | 800 Series | | | Ventilation | | | 95
30" & 36" Downdraft Hood Clearances
MIN 1/2" (13)
Cooktop cutout width MIN 1/2" (13)
Cooktop cutout width HDDREC5UC
Recirculation kit (not compatible with gas cooktop installations with downdraft)
HDDFILTUC
Charcoal filter replacement for recirculation kit 30" Downdraft Hood 36" Downdraft Hood Template 2-1/8" (54)
24-11/16" (628) 22-5/16" (567)
19-1/8" (486)
Template 2-1/8" (54)
25-7/16" - - - - 25-9/16" (646 - - - 649)
22-11/16" - - - - 22-13/16" (576 - - - 579)
19-7/8" - - - 20" (505 - - - 508)
Optional Accessory for 36" Downdraft Hood HDD6RSP
36" gas gas cooktop cooktop seal kit for for downdraft (required for for installation with gas gas cooktops)
Optional Accessories for 30" and 36" Downdraft Hoods
800 Series Downdraft Hoods
Ventilation — 800 Series Downdraft Hoods
Downdraft Hood with Gas Cooktop Cutout
Downdraft Hood with Electric or Induction Cooktop Cutout
Downdraft cutout width: 30" (762) is 27-1/16" (687) 36" (914) is 33-1/16" (840)
BT
1-7/8" (48)
Optional Accessory for 30" Downdraft Hood HDD0RSP
30" gas gas cooktop cooktop seal kit for for downdraft (required for for installation with gas gas cooktops)
Downdraft cutout width: 30" (762) is 27-1/16" (687) 36" (914) is 33-1/16" (840)
1–800–944–2904 | bosch-home com/us
1-1/16" (27)
11/16" (17)
BT
2-1/4" (57)
