Sr. No
01
Type of Eclipse

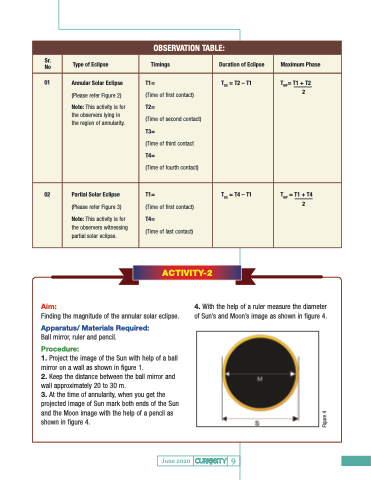

OBSERVATION TABLE:
Timings
Duration of Eclipse
TDE = T2 – T1
Maximum Phase
TMP= T1 + T2 2
02
Annular Solar Eclipse
(Please refer Figure 2)
Note: This activity is for the observers lying in the region of annularity.
Partial Solar Eclipse
(Please refer Figure 3)
Note: This activity is for the observers witnessing partial solar eclipse.
T1=
(Time of first contact)
T2=
(Time of second contact)
T3=
(Time of third contact
T4=
(Time of fourth contact)
T1=
(Time of first contact)
T4=
(Time of last contact)
TDE = T4 – T1
TMP = T1 + T4 2
ACTIVITY-2
Aim:
Finding the magnitude of the annular solar eclipse.
Apparatus/ Materials Required:
Ball mirror, ruler and pencil.
Procedure:
1. Project the image of the Sun with help of a ball mirror on a wall as shown in figure 1.
2. Keep the distance between the ball mirror and wall approximately 20 to 30 m.
3. At the time of annularity, when you get the projected image of Sun mark both ends of the Sun and the Moon image with the help of a pencil as shown in figure 4.
4. With the help of a ruler measure the diameter of Sun’s and Moon’s image as shown in figure 4.
June 2020
9
Figure 4
