P. 38

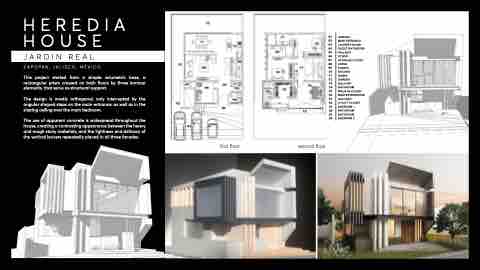

HEREDIA HOUSE
first floor
second floor
01 GARAGE
02 MAIN ENTRANCE
03 LAUNDRY ROOM
04 GUEST BATHROOM
05 HALLWAY
06 STUDIO
07 STORAGE CLOSET
08 LIVING
09 PANTRY
10 KITCHEN
11 DINING
12 GARDEN
13 BALCONY
14 BATHROOM
15 WALK IN CLOSET
16 MASTER BEDROOM
17 HALLWAY
18 UTILITY CLOSET
19 BEDROOM 1
20 BATHROOM
21 BATHROOM
22 BEDROOM 2
JARDIN REAL
ZAPOPAN, JALISCO, MÉXICO
This project started from a simple volumetric base, a rectangular prism crossed on both floors by three laminar elements, that serve as structural support.
The design is mostly orthogonal, only interrupted by the angular shaped steps on the main entrance, as well as in the sloping ceiling over the main bedroom.
The use of apparent concrete is widespread throughout the house, creating a contrasting appearance between the heavy and rough stony materials, and the lightness and delicacy of the vertical louvers repeatedly placed in all three facades.
