Page 44 - Digital Lighting Management

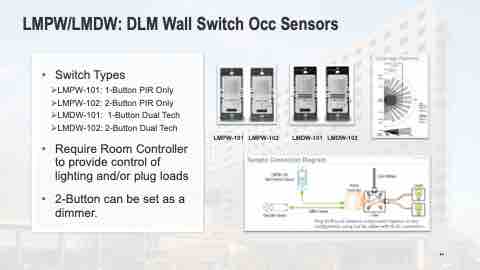

LMPW/LMDW: DLM Wall Switch Occ Sensors
•
Switch Types LMPW-101: 1-Button PIR Only
LMPW-102: 2-Button PIR Only LMDW-101: 1-Button Dual Tech LMDW-102: 2-Button Dual Tech
Require Room Controller to provide control of lighting and/or plug loads
2-Button can be set as a dimmer.
• •
LMPW-101 LMPW-102
LMDW-101 LMDW-102
BUILDING CONTROL SYSTEMS 44
