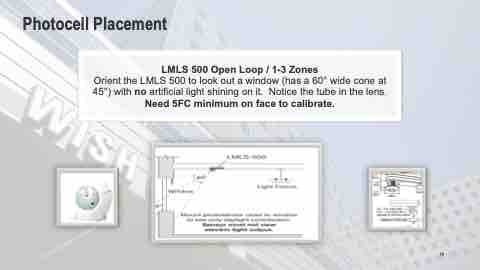

Photocell Placement
LMLS 500 Open Loop / 1-3 Zones
Orient the LMLS 500 to look out a window (has a 60° wide cone at 45°) with no artificial light shining on it. Notice the tube in the lens. Need 5FC minimum on face to calibrate.
