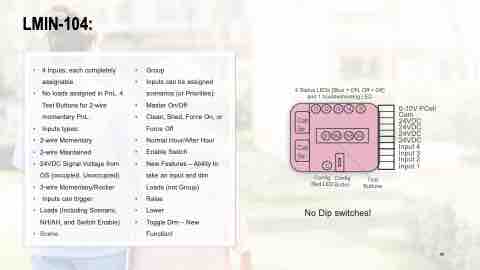

LMIN-104:
• 4 Inputs, each completely assignable
• No loads assigned in PnL. 4 Test Buttons for 2-wire momentary PnL.
• Inputs types:
• 2-wire Momentary
• 2-wire Maintained
• 24VDC Signal Voltage from
OS (occupied. Unoccupied)
• 3-wire Momentary/Rocker
• Inputs can trigger:
• Loads (Including Scenario,
NH/AH, and Switch Enable)
• Scene
• Group
• Inputs can be assigned
scenarios (or Priorities):
• Master On/Off
• Clean, Shed, Force On, or
4 Status LEDs (Blue = ON, Off = Off) and 1 troubleshooting LED
Force Off 5e
• Normal Hour/After Hour • Enable Switch
• New Features – Ability to
take an input and dim
Loads (not Group) • Raise
• Lower
• Toggle Dim – New
Function!
Cat 5e
I1 I2 Cat
I3
I4 R
0-10V PCell Com 24VDC 24VDC 24VDC 24VDC Input 4 Input 3 Input 2 Input 1
B1 B2 B3 B4
C
Config Config Red LED Button
No Dip switches!
T est Buttons
