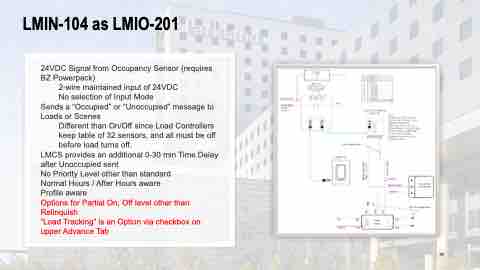

LMIN-104 as LMIO-201
24VDC Signal from Occupancy Sensor (requires BZ Powerpack)
2-wire maintained input of 24VDC
No selection of Input Mode
Sends a “Occupied” or “Unoccupied” message to Loads or Scenes
Different than On/Off since Load Controllers keep table of 32 sensors, and all must be off before load turns off.
LMCS provides an additional 0-30 min Time Delay after Unoccupied sent
No Priority Level other than standard
Normal Hours / After Hours aware
Profile aware
Options for Partial On, Off level other than Relinquish
“Load Tracking” is an Option via checkbox on upper Advance Tab
