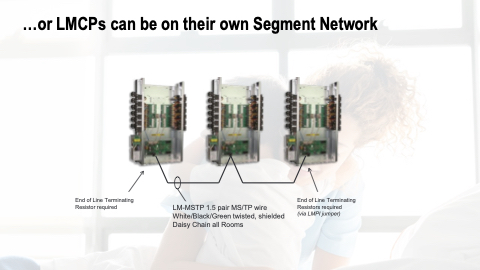

...or LMCPs can be on their own Segment Network
End of Line Terminating Resistor required
LM-MSTP 1.5 pair MS/TP wire White/Black/Green twisted, shielded Daisy Chain all Rooms
End of Line Terminating Resistors required
(via LMPI jumper)
