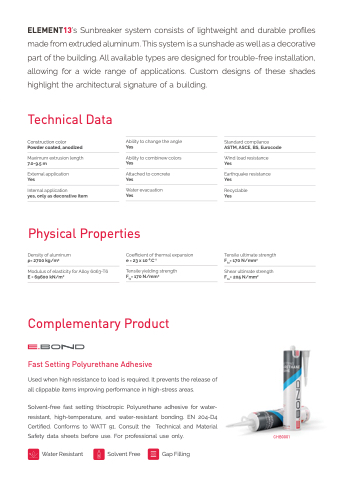

Page 3 - Sunbreaker Series

ELEMENT13’s Sunbreaker system consists of lightweight and durable profiles made from extruded aluminum. This system is a sunshade as well as a decorative part of the building. All available types are designed for trouble-free installation, allowing for a wide range of applications. Custom designs of these shades highlight the architectural signature of a building.
Technical Data
Construction color
Powder coated, anodized
Maximum extrusion length
7.0-9.5 m
External application
Yes
Internal application
yes, only as decorative item
Ability to change the angle
Yes
Ability to combinew colors
Yes
Attached to concrete
Yes
Water evacuation
Yes
Standard compliance
ASTM, ASCE, BS, Eurocode
Wind load resistance
Yes
Earthquake resistance
Yes
Recyclable
Yes
Tensile ultimate strength
F = 170 N/mm2 tu
Shear ultimate strength
Physical Properties
Density of aluminum
ρρ= 2700 kg/m3
Modulus of elasticity for Alloy 6063-T6
Coefficient of thermal expansion
e = 23 x 10-6.C-1
Tensile yielding strength
E = 69600 kN/m2 F
ty
= 170 N/mm2
F
su
= 205 N/mm2
Complementary Product Fast Setting Polyurethane Adhesive
Used when high resistance to load is required. It prevents the release of all clippable items improving performance in high-stress areas.
Solvent-free fast setting thixotropic Polyurethane adhesive for water- resistant, high-temperature, and water-resistant bonding. EN 204-D4 Certified. Conforms to WATT 91. Consult the Technical and Material Safety data sheets before use. For professional use only.
CHB0001
Water Resistant Solvent Free Gap Filling
