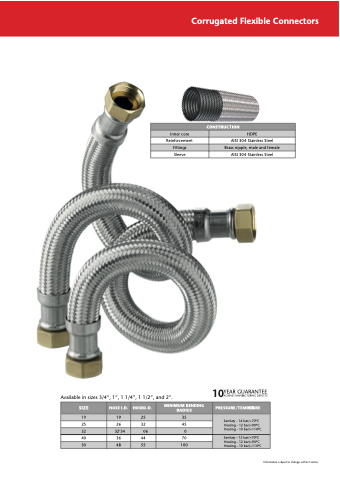

Corrugated Flexible Connectors
CONSTRUCTION
Inner core
HDPE
Reinforcement
AISI 304 Stainless Steel
Fittings
Brass nipple, male and female
Sleeve
AISI 304 Stainless Steel
Available in sizes 3/4”, 1”, 1 1/4”, 1 1/2”, and 2”.
10YEAR GUARANTEE AGAINST MANFUACTURING DEFECTS
SIZE
HOSE I.D.
HOSEO.D.
MINIMUM BENDING RADIUS
PRESSURE/TEMPAETRURE
19
19
25
35
Sanitary - 16 bar/+70oC Heating - 12 bar/+90oC Heating - 10 bar/+110oC
25
26
32
45
32
32’54
06
0
40
36
44
70
Sanitary - 12 bar/+70oC Heating - 12 bar/+90oC Heating - 10 bar/+110oC
50
48
55
100
Information subject to change without notice.
