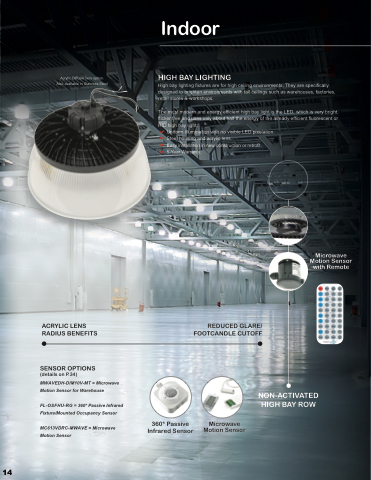

Page 14 - 2019 Light The Way Fixtures Product Line

14
Acrylic Diffuser lens option. Also available in Stainless Steel
HIGH BAY LIGHTING
High bay lighting fixtures are for high ceiling environments. They are specifically designed to brighten environments with tall ceilings such as warehouses, factories, retail stores & workshops.
The most modern and energy efficient high bay light is the LED, which is very bright, flicker free and uses only about half the energy of the already efficient fluorescent or HID high bay light.
aUniform illumination with no visible LED pixelation.
ACRYLIC LENS RADIUS BENEFITS
SENSOR OPTIONS (details on P.34)
MWAVEDH-DIM10V-MT = Microwave Motion Sensor for Warehouse
FL-OSFHU-RG = 360* Passive Infrared Fixture/Mounted Occupancy Sensor
MC613VDRC-MWAVE = Microwave Motion Sensor
REDUCED GLARE/ FOOTCANDLE CUTOFF
Indoor
aSteel housing and acrylic lens.
aEasy installation in new construction or retrofit. a5-Year Warranty.
FEATURES
IP65
The MWAVEDH sensor is innovative and active motion detectors with HF system 5.8GHz. Motion can be detected through plastic, glass and thin non-metal materials, except the higher mounting height 15M Max.
The sensors allow energy saving without compromising comfort. When used in combination with 1-10V dimmable LED drivers or ballasts, they can achieve 3-step dimming function. This is perfect for use in some areas that require a light change before complete switch off.
• Automatic dimming when used in combination with 1-10V dimmable LED drivers or ballasts.
MWAVEDHS-REM
• Built-in adjustable daylight sensor.
• Detection area, time delay and daylight threshold can
(Remote sold seperately)
be precisely set via DIP switch.
• Wide detection area, range up to 16m in diameter and
mounting height 15M Max. Suitable for warehouse use. • Optional mounting brackets for different application.
DIMENSIONS
BEST LIGHTING PRODUCTS • 1213 ETNA PARKWAY, PATASKALA OH 43062 • 740-964-1198 • www.bestlighting.net
Specifications and dimensions subject to change without notice.
MWAVEDH-DIM10V-MT
Operating Voltage Rated Load
120277VAC, 50Hz/60Hz
400W@120VAC, 800W@220-277VAC (inductive) 800W@120VAC, 1200W@220-277VAC (resistive) 5.8GHz±75MHz, ISM wave band
<0.5mW
≤ 0.8W(standby), <1.5W(operation)
Max.(D x H): 16m x 15m
100% / 50%
5s / 30s / 90s / 3min / 20min / 30min
50lux / 100lux / 200lux / Disable
5s / 5min / 10min / 30min / 1h / +
10% / 20% / 30% / 50%
15m Max.
0.53m/s
1500(wall installation),
3600(ceiling installation)
-350C700C
HF System
Transmitting Power Power Consumption Detection Zone Detection Sensitivity Hold Time
Daylight Sensor Stand-by Period Stand-by Dimming Level Mounting Height Motion Detection Detection Angle
Operating Temperature
360* Passive Infrared Sensor
Microwave Motion Sensor
NON-ACTIVATED HIGH BAY ROW
Microwave Motion Sensor with Remote
