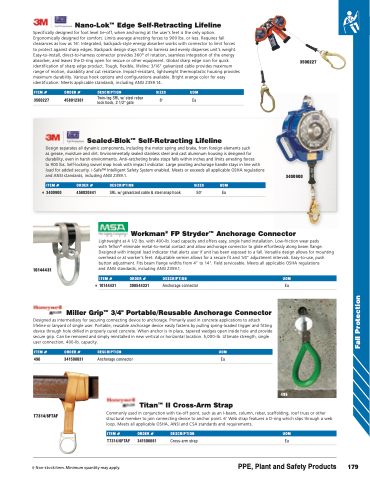

Page 181 - APSSM Safety eCatalog

Nano-LokTM Edge Self-Retracting Lifeline
Specifically designed for foot level tie-off, when anchoring at the user’s feet is the only option. Ergonomically designed for comfort. Limits average arresting forces to 900 lbs. or less. Requires fall clearances as low as 16'. Integrated, backpack-style energy absorber works with connector to limit forces to protect against sharp edges. Backpack design stays tight to harness and evenly disperses unit’s weight. Easy-to-install, direct-to-harness connector provides 360° of rotation, seamless integration of the energy absorber, and leaves the D-ring open for rescue or other equipment. Global sharp edge icon for quick identification of sharp edge product. Tough, flexible, lifeline: 3/16" galvanized cable provides maximum range of motion, durability and cut resistance. Impact-resistant, lightweight thermoplastic housing provides maximum durability. Various hook options and configurations available. Bright orange color for easy identification. Meets applicable standards, including ANSI Z359.14.
3500227
Lightweight at 4 1/2 lbs. with 400-lb. load capacity and offers easy, single hand installation. Low-friction wear pads
with Teflon® eliminate metal-to-metal contact and allow anchorage connector to glide effortlessly along beam flange. Designed with integral load indicator that alerts user if unit has been exposed to a fall. Versatile design allows for mounting overhead or at worker’s feet. Adjustable vernier allows for a secure fit and 1/4" adjustment intervals. Easy-to-use, push button adjustment. Fits beam flange widths from 4" to 14". Field serviceable. Meets all applicable OSHA regulations
and ANSI standards, including ANSI Z359.1.
♦ 10144431 308544331 Anchorage connector Ea
Miller GripTM 3/4" Portable/Reusable Anchorage Connector
ITEM #
ORDER #
DESCRIPTION
SIZES
UOM
3500227 458012361
Twin-leg SRL w/ steel rebar 8' Ea lock hook, 2 1/2" gate
Sealed-BlokTM Self-Retracting Lifeline
Design separates all dynamic components, including the motor spring and brake, from foreign elements such
as grease, moisture and dirt. Environmentally sealed stainless steel and cast aluminum housing is designed for durability, even in harsh environments. Anti-ratcheting brake stops falls within inches and limits arresting forces
to 900 lbs. Self-locking swivel snap hook with impact indicator. Large pivoting anchorage handle stays in line with load for added security. i-SafeTM Intelligent Safety System enabled. Meets or exceeds all applicable OSHA regulations and ANSI standards, including ANSI Z359.1.
♦ 3400900 458020441 SRL w/ galvanized cable & steel snap hook 50' Ea
ITEM #
ORDER #
DESCRIPTION
SIZES
UOM
3400900
10144431
Workman® FP StryderTM Anchorage Connector
ITEM #
ORDER #
DESCRIPTION
UOM
Designed as intermediary for securing connecting device to anchorage. Primarily used in concrete applications to attach lifeline or lanyard of single user. Portable, reusable anchorage device easily fastens by pulling spring-loaded trigger and fitting device through hole drilled in properly cured concrete. When anchor is in place, tapered wedges open inside hole and provide secure grip. Can be removed and simply reinstalled in new vertical or horizontal location. 5,000-lb. Ultimate strength, single user connection, 400-lb. capacity.
ITEM #
ORDER #
DESCRIPTION
UOM
496 341508031
T7314/6FTAF
Anchorage connector Ea
TitanTM II Cross-Arm Strap
496
Commonly used in conjunction with tie-off point, such as an I-beam, column, rebar, scaffolding, roof truss or other structural member to join connecting device to anchor point. 6' Web strap features a D-ring which slips through a web loop. Meets all applicable OSHA, ANSI and CSA standards and requirements.
T7314/6FTAF 341506661 Cross-arm strap Ea
ITEM #
ORDER #
DESCRIPTION
UOM
♦ Non-stock item. Minimum quantity may apply. PPE, Plant and Safety Products 179
Fall Protection
