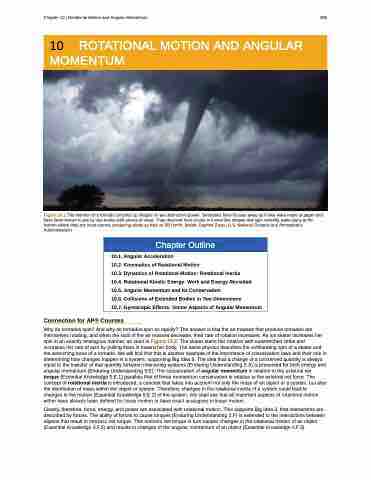

Chapter 10 | Rotational Motion and Angular Momentum 395
10 ROTATIONAL MOTION AND ANGULAR MOMENTUM
Figure 10.1 The mention of a tornado conjures up images of raw destructive power. Tornadoes blow houses away as if they were made of paper and have been known to pierce tree trunks with pieces of straw. They descend from clouds in funnel-like shapes that spin violently, particularly at the bottom where they are most narrow, producing winds as high as 500 km/h. (credit: Daphne Zaras, U.S. National Oceanic and Atmospheric Administration)
Chapter Outline
10.1. Angular Acceleration
10.2. Kinematics of Rotational Motion
10.3. Dynamics of Rotational Motion: Rotational Inertia
10.4. Rotational Kinetic Energy: Work and Energy Revisited 10.5. Angular Momentum and Its Conservation
10.6. Collisions of Extended Bodies in Two Dimensions
10.7. Gyroscopic Effects: Vector Aspects of Angular Momentum
Connection for AP® Courses
Why do tornados spin? And why do tornados spin so rapidly? The answer is that the air masses that produce tornados are themselves rotating, and when the radii of the air masses decrease, their rate of rotation increases. An ice skater increases her spin in an exactly analogous manner, as seen in Figure 10.2. The skater starts her rotation with outstretched limbs and increases her rate of spin by pulling them in toward her body. The same physics describes the exhilarating spin of a skater and the wrenching force of a tornado. We will find that this is another example of the importance of conservation laws and their role in determining how changes happen in a system, supporting Big Idea 5. The idea that a change of a conserved quantity is always equal to the transfer of that quantity between interacting systems (Enduring Understanding 5.A) is presented for both energy and angular momentum (Enduring Understanding 5.E). The conservation of angular momentum in relation to the external net torque (Essential Knowledge 5.E.1) parallels that of linear momentum conservation in relation to the external net force. The concept of rotational inertia is introduced, a concept that takes into account not only the mass of an object or a system, but also the distribution of mass within the object or system. Therefore, changes in the rotational inertia of a system could lead to changes in the motion (Essential Knowledge 5.E.2) of the system. We shall see that all important aspects of rotational motion either have already been defined for linear motion or have exact analogues in linear motion.
Clearly, therefore, force, energy, and power are associated with rotational motion. This supports Big Idea 3, that interactions are described by forces. The ability of forces to cause torques (Enduring Understanding 3.F) is extended to the interactions between objects that result in nonzero net torque. This nonzero net torque in turn causes changes in the rotational motion of an object (Essential Knowledge 3.F.2) and results in changes of the angular momentum of an object (Essential Knowledge 3.F.3).
