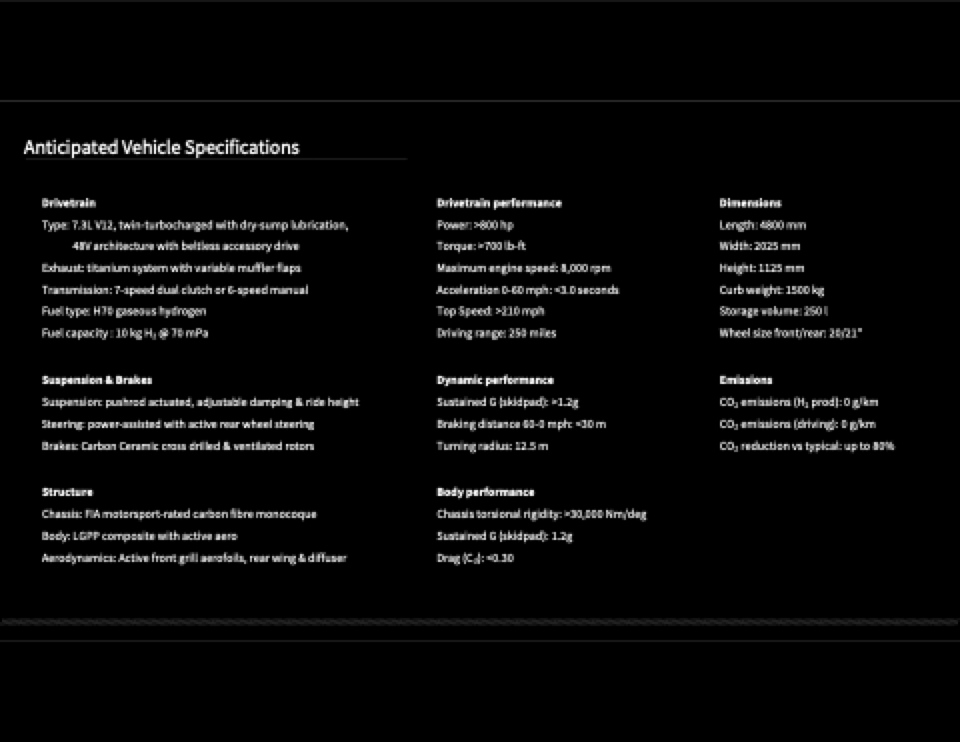

RAenatircvipieawted Vehicle Specifications
Drivetrain
Type: 7.3L V12, twin-turbocharged with dry-sump lubrication, 48V architecture with beltless accessory drive
Exhaust: titanium system with variable muffler flaps
Transmission: 7-speed dual clutch or 6-speed manual Fuel type: H70 gaseous hydrogen
Fuel capacity : 10 kg H2 @ 70 mPa
Suspension & Brakes
Suspension: pushrod actuated, adjustable damping & ride height Steering: power-assisted with active rear wheel steering
Brakes: Carbon Ceramic cross drilled & ventilated rotors
Structure
Chassis: FIA motorsport-rated carbon fibre monocoque Body: LGPP composite with active aero
Aerodynamics: Active front grill aerofoils, rear wing & diffuser
Drivetrain performance
Power: >800 hp
Torque: >700 lb-ft
Maximum engine speed: 8,000 rpm Acceleration 0-60 mph: <3.0 seconds Top Speed: >210 mph
Driving range: 250 miles
Dynamic performance
Sustained G (skidpad): >1.2g Braking distance 60-0 mph: <30 m Turning radius: 12.5 m
Body performance
Chassis torsional rigidity: >30,000 Nm/deg Sustained G (skidpad): 1.2g
Dimensions
Length: 4800 mm
Width: 2025 mm
Height: 1125 mm
Curb weight: 1500 kg Storage volume: 250 l
Wheel size front/rear: 20/21”
Emissions
CO2 emissions (H2 prod): 0 g/km CO2 emissions (driving): 0 g/km CO2 reduction vs typical: up to 80%
/
/
/
Drag (Cd): <0.30
_Initial concept sketches are subject to change and not necessarily representative of final design
///////////////////////////////////////////////
/ ///////////////////////////////////////
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
//
/
/
/
/
/ /
//
/
/
/
/
/
/ /
//
/
/
/
/
/ /
//
/
/
/
/
/ /
//
/
/
/
/
/ /
//
//
/
/
/
/
/ /
//
/
/
/
/
/
//
/
/
/
/
/ /
//
/
/
/
/
/
/ /
//
/
/
/
/
/ /
//
/
/
/
/
/ /
//
/
/
/
/
/ /
//
//
/
/
/
/
/ /
//
/
/
/
/
/
/ /
//
/
/
/
/
/ /
//
/
/
/
/
/ /
//
/
/
/
/
/ /
//
//
/
/
/
/
/ /
//
/
/
/
/
/
/ /
/
/
/
/
/
/ /
//
/
/
/
/
/ /
//
/
/
/
/
/ /
//
//
/
/
/
/
/ /
//
/
/
/
/
/
/ /
/
/
/
/
/
/ /
//
/
/
/
/
/ /
//
/
/
/
/
/ /
//
//
/
/
/
/
/ /
//
/
/
/
/
/
//
/
/
/
/
/
/ /
/
/
/
/
/
/ /
//
/
/
/
/
/ /
//
//
/
/
/
/
/ /
/
/
/
/
/ /
//
/
/
/
/
/ /
//
/
/
/
/
/ /
//
//
/
/
/
/
/ /
//
/
/
/
/
/
/ /
//
/
/
/
/
/ /
//
/
/
/
/
/ /
//
/
/
/
/
/ /
//
//
/
/
/
/
/ /
//
/
/
/
