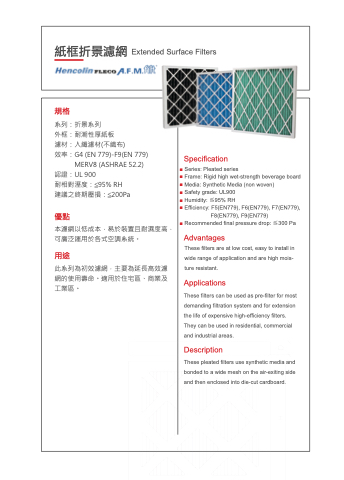

紙框折景濾網 Extended Surface Filters
規格
系列:折景系列
外框:耐潮性厚紙板
濾材:人纖濾材(不織布)
效率:G4 (EN 779)-F9(EN 779) .Specification
MERV8 (ASHRAE 52.2) 認證:UL 900
耐相對溼度:≦95% RH .
建議之終期壓損:≦200Pa
優點
Media: Synthetic Media (non woven)
Safety grade: UL900 .Humidity: ≦95% RH
Efficiency: F5(EN779), F6(EN779), F7(EN779), F8(EN779), F9(EN779)
Recommended final pressure drop: ≦300 Pa
Advantages
These filters are at low cost, easy to install in wide range of application and are high mois- ture resistant.
Applications
These filters can be used as pre-filter for most demanding filtration system and for extension the life of expensive high-efficiency filters. They can be used in residential, commercial and industrial areas.
Description
These pleated filters use synthetic media and bonded to a wide mesh on the air-exiting side and then enclosed into die-cut cardboard.
本濾網以低成本，易於裝置且耐濕度高，
可廣泛運用於各式空調系統。
用途
此系列為初效濾網，主要為延長高效濾
網的使用壽命。適用於住宅區、商業及
工業區。
.Series: Pleated series
.Frame: Rigid high wet-strength beverage board
