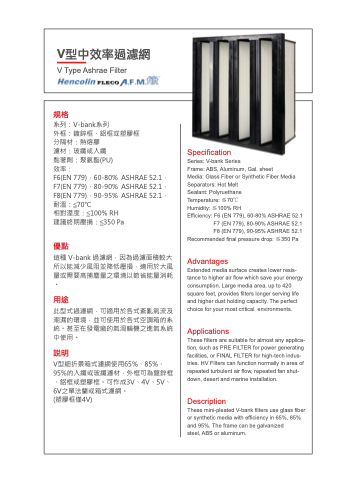

V型中效率過濾網 V Type Ashrae Filter
規格
系列:V-bank系列 外框:鍍鋅框、鋁框或塑膠框 分隔材:熱熔膠 濾材:玻纖或人纖 黏著劑:聚氨酯(PU)
Specification
Series: V-bank Series
效率: Frame: ABS, Aluminum, Gal. sheet
F6(EN 779)，60-80% ASHRAE 52.1， F7(EN 779)，80-90% ASHRAE 52.1， F8(EN 779)，90-95% ASHRAE 52.1， 耐溫:≦70°C
相對溼度:≦100% RH 建議終期壓損:≦350 Pa
優點
這種 V-bank 過濾網，因為過濾面積較大 所以能減少風阻並降低壓損，適用於大風 量或需要高捕塵量之環境以節省能量消耗 。
用途
此型式過濾網，可適用於各式紊亂氣流及
潮濕的環境，並可使用於各式空調箱的系
統。甚至在發電廠的氣渦輪機之進氣系統
中使用。
說明
V型細折景箱式濾網使用65%、85%、 95%的人纖或玻纖濾材，外框可為鍍鋅框 、鋁框或塑膠框。可作成3V、4V、5V、 6V之單法蘭或箱式濾網。
(塑膠框僅4V)
Media: Glass Fiber or Synthetic Fiber Media Separators: Hot Melt
Sealant: Polyruethane
Temperature: ≦70°C
Humidity: ≦100% RH
Efficiency: F6 (EN 779), 60-80% ASHRAE 52.1
F7 (EN 779), 80-90% ASHRAE 52.1
F8 (EN 779), 90-95% ASHRAE 52.1 Recommended final pressure drop: ≦350 Pa
Advantages
Extended media surface creates lower resis- tance to higher air flow which save your energy consumption. Large media area, up to 420 square feet, provides filters longer serving life and higher dust holding capacity. The perfect choice for your most critical environments.
Applications
These filters are suitable for almost any applica- tion, such as PRE FILTER for power generating facilities, or FINAL FILTER for high-tech indus- tries. HV Filters can function normally in area of repeated turbulent air flow, repeated fan shut- down, desert and marine installation.
Description
These mini-pleated V-bank filters use glass fiber or synthetic media with efficiency in 65%, 85% and 95%. The frame can be galvanized
steel, ABS or aluminum.
