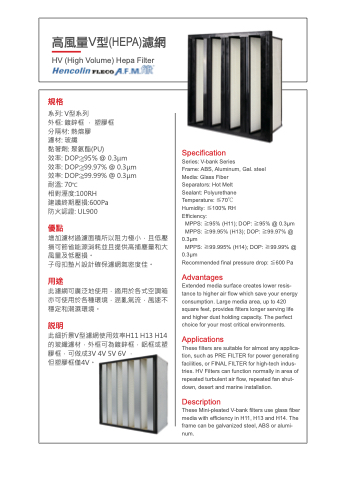

高風量V型(HEPA)濾網 HV (High Volume) Hepa Filter
規格
系列: V型系列
外框: 鍍鋅框 ， 塑膠框 分隔材: 熱熔膠
濾材: 玻纖
黏著劑: 聚氨酯(PU)
效率: DOP:≧95% @ 0.3μm 效率: DOP:≧99.97% @ 0.3μm 效率: DOP:≧99.99% @ 0.3μm 耐溫: 70°C
相對溼度:100RH 建議終期壓損:600Pa 防火認證: UL900
優點
增加濾材過濾面積所以阻力極小，且低壓
損可節省能源消耗並且提供高捕塵量和大
風量及低壓損。
子母扣墊片設計確保濾網氣密度佳。
用途
此濾網可廣泛地使用，適用於各式空調箱
亦可使用於各種環境，混亂氣流，風速不
穩定和潮濕環境。
說明
此細折景V型濾網使用效率H11 H13 H14 的玻纖濾材，外框可為鍍鋅框，鋁框或塑 膠框，可做成3V 4V 5V 6V ， 但塑膠框僅4V。
Specification
Series: V-bank Series
Frame: ABS, Aluminum, Gal. steel Media: Glass Fiber
Separators: Hot Melt
Sealant: Polyurethane Temperature: ≦70°C
Humidity: ≦100% RH
Efficiency:
MPPS: ≧95% (H11); DOP: ≧95% @ 0.3μm
MPPS: ≧99.95% (H13); DOP: ≧99.97% @ 0.3μm
MPPS: ≧99.995% (H14); DOP: ≧99.99% @ 0.3μm
Recommended final pressure drop: ≦600 Pa
Advantages
Extended media surface creates lower resis- tance to higher air flow which save your energy consumption. Large media area, up to 420 square feet, provides filters longer serving life and higher dust holding capacity. The perfect choice for your most critical environments.
Applications
These filters are suitable for almost any applica- tion, such as PRE FILTER for power generating facilities, or FINAL FILTER for high-tech indus- tries. HV Filters can function normally in area of repeated turbulent air flow, repeated fan shut- down, desert and marine installation.
Description
These Mini-pleated V-bank filters use glass fiber media with efficiency in H11, H13 and H14. The frame can be galvanized steel, ABS or alumi- num.
