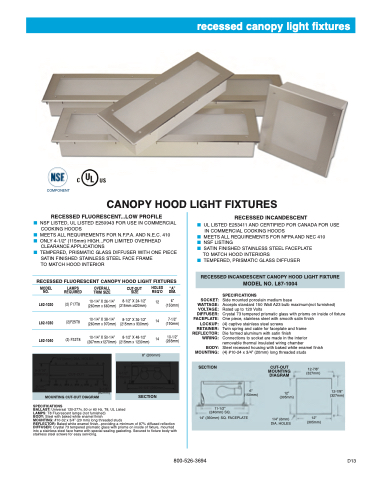

COMPONENT
CANOPY HOOD LIGHT FIXTURES
recessed canopy light fixtures
RECESSED FLUORESCENT...LOW PROFILE
I NSF LISTED, UL LISTED E250943 FOR USE IN COMMERCIAL COOKING HOODS
I MEETS ALL REQUIREMENTS FOR N.F.P.A. AND N.E.C. 410 I ONLY 4-1/2” (115mm) HIGH...FOR LIMITED OVERHEAD
CLEARANCE APPLICATIONS
I TEMPERED, PRISMATIC GLASS DIFFUSER WITH ONE PIECE
SATIN FINISHED STAINLESS STEEL FACE FRAME TO MATCH HOOD INTERIOR
HOLES “A” REQ’D DIM.
SOCKET: WATTAGE: VOLTAGE: DIFFUSER: 7-1/2” FACEPLATE: (190mm) LOCKUP: RETAINER: REFLECTOR: WIRING:
BODY: MOUNTING:
RECESSED INCANDESCENT
I UL LISTED E253411 AND CERTIFIED FOR CANADA FOR USE IN COMMERCIAL COOKING HOODS
I MEETS ALL REQUIREMENTS FOR NFPA AND NEC 410 I NSF LISTING
I SATIN FINISHED STAINLESS STEEL FACEPLATE
TO MATCH HOOD INTERIORS
I TEMPERED, PRISMATIC GLASS DIFFUSER
RECESSED FLUORESCENT CANOPY HOOD LIGHT FIXTURES
MODEL NO.
L82-1020
L82-1030
L82-1040
LAMPS REQUIRED
(2) F17T8
(2)F25T8
(2) F32T8
OVERALL TRIM SIZE
10-1/4” X 26-1/4” (260mm x 660mm)
10-1/4” X 38-1/4” (260mm x 970mm)
10-1/4” X 50-1/4” (267mm x1270mm)
CUT-OUT SIZE
8-1/2” X 24-1/2” (215mm x620mm)
8-1/2” X 36-1/2” (215mm x 930mm)
8-1/2” X 48-1/2” (215mm x 1230mm)
12
14
14
6” (150mm)
SPECIFICATIONS
Side mounted porcelain medium base
Accepts standard 150 Watt A23 bulb maximum(not furnished) Rated up to 120 Volts
Crystal 73 tempered prismatic glass with prisms on inside of fixture One piece, stainless steel with smooth satin finish
(4) captive stainless steel screws
Twin spring and cable for faceplate and frame
Die formed aluminum with satin finish
Connections to socket are made in the interior
removable thermal insulated wiring chamber
Steel recessed housing with baked white enamel finish
(4) #10-24 x 3/4” (20mm) long threaded studs
9-3/16” (233mm)
3-1/4” (82mm)
1/4”(6mm) DIA. HOLES
CUT-OUT AAAA
3-1/4” (82mm)
MOUNTING CUT-OUT DIAGRAM
10-1/2” (265mm)
RECESSED INCANDESCENT CANOPY HOOD LIGHT FIXTURE MODEL NO. L87-1004
SECTION
11-1/2” (240mm) SQ.
6” (150mm)
CUT-OUT MOUNTING DIAGRAM
12” (305mm)
1/4” (6mm) DIA. HOLES
12-7/8” (327mm)
12” (305mm)
12-7/8” (327mm)
14” (350mm) SQ. FACEPLATE
4-1/2” (115mm)
8” (200mm)
10-1/4” (260mm)
SECTION
SPECIFICATIONS
BALLAST: Universal 120-277v, 50 or 60 Hz, T8, UL Listed
LAMPS: T8 Fluorescent lamps (not furnished)
BODY: Steel with baked white enamel finish
MOUNTING: #10-32 x 3/4” (20 mm) long threaded studs
REFLECTOR: Baked white enamel finish...providing a minimum of 87% diffused reflection DIFFUSER: Crystal 73 tempered prismatic glass with prisms on inside of fixture, mounted into a stainless steel face frame with special sealing gasketing. Secured to fixture body with stainless steel screws for easy servicing.
