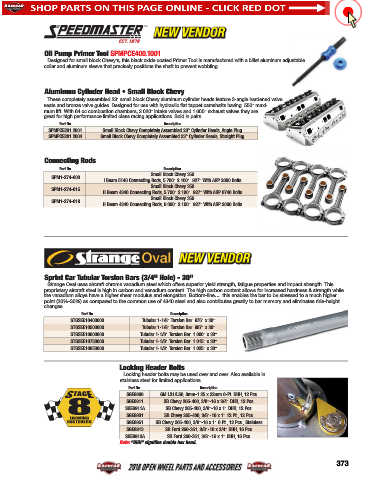

Page 374 - 2018 Racecar Engineering Open Wheel Parts and Accessories Catalog

Oil Pump Primer Tool SPMPCE400.1001
Designed for small block Chevy’s, this black oxide coated Primer Tool is manufactured with a billet aluminum adjustable
collar and aluminum sleeve that precisely positions the shaft to prevent wobbling.

Aluminum Cylinder Head • Small Block Chevy
These completely assembled 23° small block Chevy aluminum cylinder heads feature 3-angle hardened valve
seats and bronze valve guides. Designed for use with hydraulic flat tappet camshafts having .550" maxi-
mum lift. With 64 cc combustion chambers, 2.020" intake valves and 1.600" exhaust valves they are
great for high performance limited class racing applications. Sold in pairs.
Part No. Description
SPMPCE281.2001 Small Block Chevy Completely Assembled 23° Cylinder Heads, Angle Plug
SPMPCE281.2004 Small Block Chevy Completely Assembled 23° Cylinder Heads, Straight Plug

Connecting Rods
Part No. Description
Small Block Chevy 350
SPM1-274-003
I Beam 5140 Connecting Rods, 5.700" 2.100" .927" With ARP 2000 Bolts
Small Block Chevy 350
SPM1-274-015
H Beam 4340 Connecting Rods, 5.700" 2.100" .927" With ARP 8740 Bolts
Small Block Chevy 350
SPM1-274-019
H Beam 4340 Connecting Rods, 6.000" 2.100" .927" With ARP 2000 Bolts

Sprint Car Tubular Torsion Bars (3/4" Hole) - 30"
Strange Oval uses aircraft chrome vanadium steel which offers superior yield strength, fatigue properties and impact strength. This
proprietary aircraft steel is high in carbon and vanadium content. The high carbon content allows for increased hardness & strength while
the vanadium alloys have a higher shear modulus and elongation. Bottom-line…..this enables the bar to be stressed to a much higher
point (20%-30%) as compared to the common use of 4340 steel and also contributes greatly to bar memory and eliminates ride-height
changes.
Part No. Description
STGSEE10403000 Tubular 1-1/8" Torsion Bar .975" x 30"
STGSEE10503000 Tubular 1-1/8" Torsion Bar .987" x 30"
STGSEE10603000 Tubular 1-1/8" Torsion Bar .1.000" x 30"
STGSEE10753000 Tubular 1-1/8" Torsion Bar .1.015" x 30"
STGSEE10853000 Tubular 1-1/8" Torsion Bar .1.025" x 30"

Locking Header Bolts
Locking header bolts may be used over and over. Also available in
stainless steel for limited applications.
Part No. Description
SGE8900 GM LS1/LS6, 8mm-1.25 x 22mm 6-Pt. DHH, 12 Pcs.
SGE8911 SB Chevy 265-400, 3/8"-16 x 3/4" DHH, 12 Pcs.
SGE8911A SB Chevy 265-400, 3/8"-16 x 1" DHH, 12 Pcs.
SGE8931 SB Chevy 265-400, 3/8"-16 x 1" 12 Pt., 12 Pcs.
SGE8951 SB Chevy 265-400, 3/8"-16 x 1" 6 Pt., 12 Pcs., Stainless
SGE8913 SB Ford 260-351, 3/8"-16 x 3/4" DHH, 16 Pcs.
SGE8913A SB Ford 260-351, 3/8"-16 x 1" DHH, 16 Pcs.
Note: “DHH” signifies double hex head.
