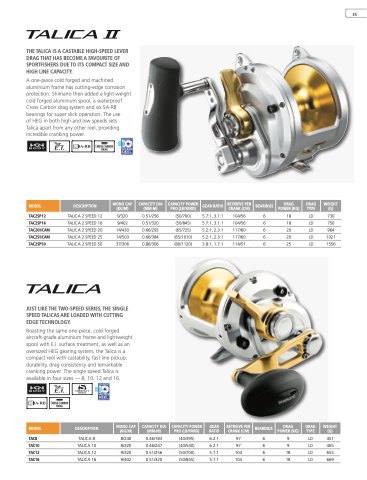

Page 37 - SNZ 2019/ 20 Catalogue Draft

35
THE TALICA IS A CASTABLE HIGH-SPEED LEVER DRAG THAT HAS BECOME A FAVOURITE OF SPORTFISHERS DUE TO ITS COMPACT SIZE AND HIGH LINE CAPACITY.
A one-piece cold forged and machined aluminium frame has cutting-edge corrosion protection. Shimano then added a light-weight cold forged aluminium spool, a waterproof Cross Carbon drag system and six SA-RB bearings for super slick operation. The use
of HEG in both high and low speeds sets
Talica apart from any other reel, providing incredible cranking power.
MODEL
DESCRIPTION
MONO CAP (KG/M)
CAPACITY DIA (MM-M)
CAPACITY POWER PRO (LB/YARD)
GEAR RATIO
RETRIEVE PER CRANK (CM)
BEARINGS
DRAG POWER (KG)
DRAG TYPE
WEIGHT (G)
TALICA 2 SPEED 12
9/320
0.51/256
(50/700)
5.7:1, 3.1:1
104/56
6
18
LD
TALICA 2 SPEED 16
9/402
0.51/320
(50/845)
5.7:1, 3.1:1
104/56
6
18
LD
TALICA 2 SPEED 20
14/430
0.66/293
(65/725)
5.2:1, 2.3:1
117/60
6
20
LD
TALICA 2 SPEED 25
14/503
0.66/384
(65/1010)
5.2:1, 2.3:1
117/60
6
20
LD
TALICA 2 SPEED 50
37/306
0.86/306
(80/1120)
3.8:1, 1.7:1
114/51
6
25
LD
TAC2SP12 730 TAC2SP16 750 TAC20IICAM 964 TAC25IICAM 1021 TAC2SP50 1556
JUST LIKE THE TWO-SPEED SERIES, THE SINGLE SPEED TALICAS ARE LOADED WITH CUTTING EDGE TECHNOLOGY.
Boasting the same one-piece, cold-forged aircraft-grade aluminium frame and lightweight spool with E.I. surface treatment, as well as an oversized HEG gearing system, the Talica is a compact reel with castability, fast line pickup, durability, drag consistency and remarkable cranking power. The single speed Talica is available in four sizes — 8, 10, 12 and 16.
TAC8 451 TAC10 465 TAC12 655 TAC16 669
MODEL
DESCRIPTION
MONO CAP (KG/M)
CAPACITY DIA (MM-M)
CAPACITY POWER PRO (LB/YARD)
GEAR RATIO
RETRIEVE PER CRANK (CM)
BEARINGS
DRAG POWER (KG)
DRAG TYPE
WEIGHT (G)
TALICA 8
8/240
0.46/183
(40/395)
6.2:1
97
6
9
LD
TALICA 10
8/320
0.46/247
(40/540)
6.2:1
97
6
9
LD
TALICA 12
9/320
0.51/256
(50/700)
5.7:1
104
6
18
LD
TALICA 16
9/402
0.51/320
(50/845)
5.7:1
104
6
18
LD
