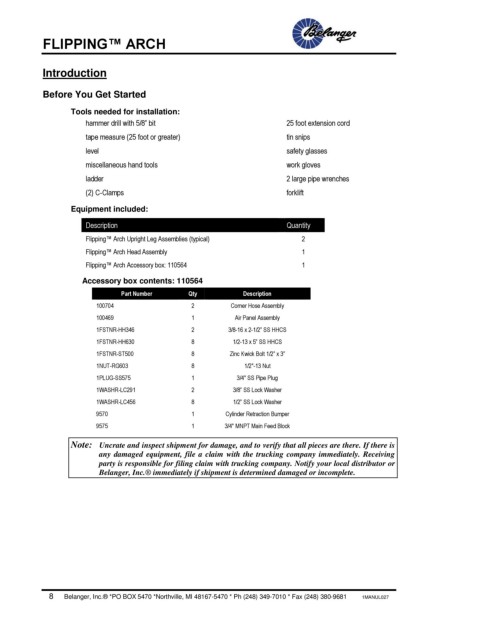

FLIPPING™ ARCH

Introduction

Before You Get Started

Tools needed for installation:
hammer drill with 5/8” bit 25 foot extension cord
tape measure (25 foot or greater) tin snips
level safety glasses

miscellaneous hand tools work gloves
ladder 2 large pipe wrenches
(2) C-Clamps forklift

Equipment included:
Description Quantity
Flipping™ Arch Upright Leg Assemblies (typical) 2

Flipping™ Arch Head Assembly 1
Flipping™ Arch Accessory box: 110564 1
Accessory box contents: 110564
Part Number Qty Description
100704 2 Corner Hose Assembly
100469 1 Air Panel Assembly
1FSTNR-HH346 2 3/8-16 x 2-1/2” SS HHCS
1FSTNR-HH630 8 1/2-13 x 5” SS HHCS
1FSTNR-ST500 8 Zinc Kwick Bolt 1/2” x 3”
1NUT-RG603 8 1/2"-13 Nut
1PLUG-SS575 1 3/4" SS Pipe Plug
1WASHR-LC291 2 3/8” SS Lock Washer
1WASHR-LC456 8 1/2” SS Lock Washer
9570 1 Cylinder Retraction Bumper
9575 1 3/4" MNPT Main Feed Block

Note: Uncrate and inspect shipment for damage, and to verify that all pieces are there. If there is
any damaged equipment, file a claim with the trucking company immediately. Receiving
party is responsible for filing claim with trucking company. Notify your local distributor or
Belanger, Inc.® immediately if shipment is determined damaged or incomplete.
