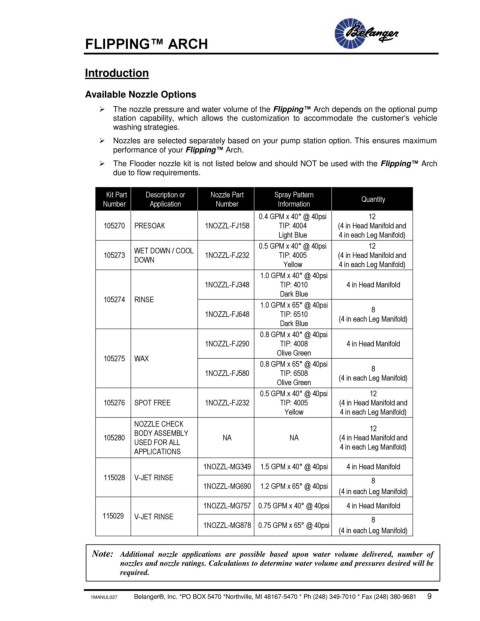

FLIPPING™ ARCH

Introduction

Available Nozzle Options

 The nozzle pressure and water volume of the Flipping™ Arch depends on the optional pump
station capability, which allows the customization to accommodate the customer’s vehicle
washing strategies.
 Nozzles are selected separately based on your pump station option. This ensures maximum
performance of your Flipping™ Arch.
 The Flooder nozzle kit is not listed below and should NOT be used with the Flipping™ Arch
due to flow requirements.

KKit Part Description or Nozzle Part Spray Pattern Quantity
Number Application Number Information
0.4 GPM x 40° @ 40psi 12
105270 PRESOAK 1NOZZL-FJ158 TIP: 4004 (4 in Head Manifold and
Light Blue 4 in each Leg Manifold)
0.5 GPM x 40° @ 40psi 12
WET DOWN / COOL
105273 1NOZZL-FJ232 TIP: 4005 (4 in Head Manifold and
DOWN
Yellow 4 in each Leg Manifold)
1.0 GPM x 40° @ 40psi
1NOZZL-FJ348 TIP: 4010 4 in Head Manifold
Dark Blue
105274 RINSE
1.0 GPM x 65° @ 40psi
8
1NOZZL-FJ648 TIP: 6510 (4 in each Leg Manifold)
Dark Blue
0.8 GPM x 40° @ 40psi
1NOZZL-FJ290 TIP: 4008 4 in Head Manifold
Olive Green
105275 WAX
0.8 GPM x 65° @ 40psi
8
1NOZZL-FJ580 TIP: 6508 (4 in each Leg Manifold)
Olive Green
0.5 GPM x 40° @ 40psi 12
105276 SPOT FREE 1NOZZL-FJ232 TIP: 4005 (4 in Head Manifold and
Yellow 4 in each Leg Manifold)
NOZZLE CHECK 12
BODY ASSEMBLY
105280 NA NA (4 in Head Manifold and
USED FOR ALL 4 in each Leg Manifold)
APPLICATIONS

1NOZZL-MG349 1.5 GPM x 40° @ 40psi 4 in Head Manifold
115028 V-JET RINSE 8
1NOZZL-MG690 1.2 GPM x 65° @ 40psi
(4 in each Leg Manifold)
1NOZZL-MG757 0.75 GPM x 40° @ 40psi 4 in Head Manifold
115029 V-JET RINSE 8
1NOZZL-MG878 0.75 GPM x 65° @ 40psi
(4 in each Leg Manifold)

Note: Additional nozzle applications are possible based upon water volume delivered, number of
nozzles and nozzle ratings. Calculations to determine water volume and pressures desired will be
required.

1MANUL027 Belanger®, Inc. *PO BOX 5470 *Northville, MI 48167-5470 * Ph (248) 349-7010 * Fax (248) 380-9681 9
