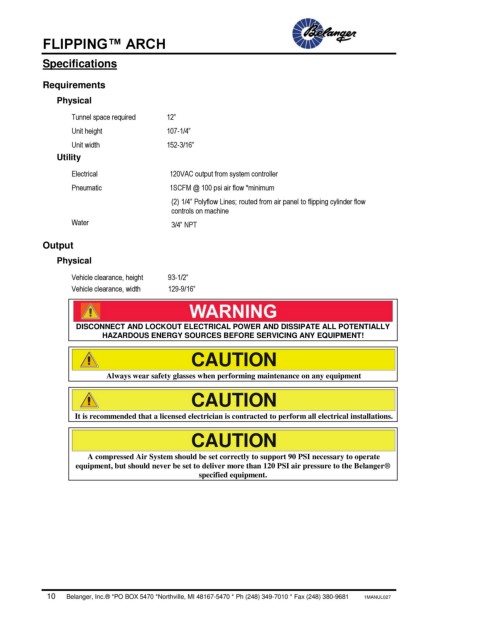

FLIPPING™ ARCH
Specifications
Requirements
Physical
Tunnel space required 12”
Unit height 107-1/4”
Unit width 152-3/16”
Utility
Electrical 120VAC output from system controller
Pneumatic 1SCFM @ 100 psi air flow *minimum
(2) 1/4” Polyflow Lines; routed from air panel to flipping cylinder flow
o controls on machine
Water 3/4” NPT
Output
Physical
Vehicle clearance, height 93-1/2”
Vehicle clearance, width 129-9/16”
DISCONNECT AND LOCKOUT ELECTRICAL POWER AND DISSIPATE ALL POTENTIALLY
HAZARDOUS ENERGY SOURCES BEFORE SERVICING ANY EQUIPMENT!
CAUTION
Always wear safety glasses when performing maintenance on any equipment
CAUTION
It is recommended that a licensed electrician is contracted to perform all electrical installations.
CAUTION
A compressed Air System should be set correctly to support 90 PSI necessary to operate
equipment, but should never be set to deliver more than 120 PSI air pressure to the Belanger®
specified equipment.
