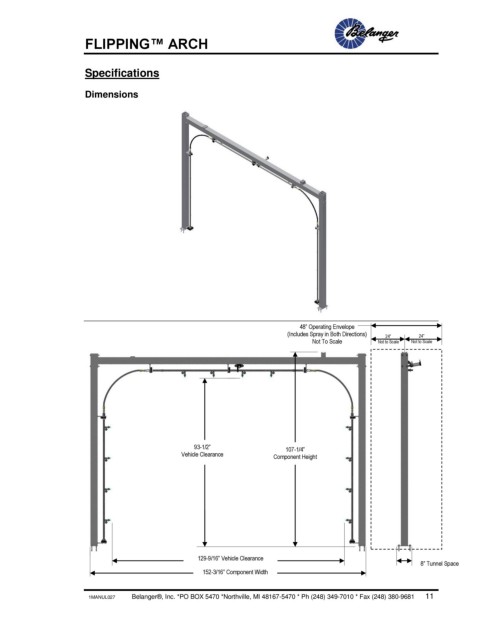

FLIPPING™ ARCH
Specifications
Dimensions
48” Operating Envelope
(Includes Spray in Both Directions) 24” 24”
Not To Scale Not to Scale Not to Scale
93-1/2” 107-1/4”
Vehicle Clearance Component Height
129-9/16” Vehicle Clearance 8” Tunnel Space
152-3/16” Component Width
