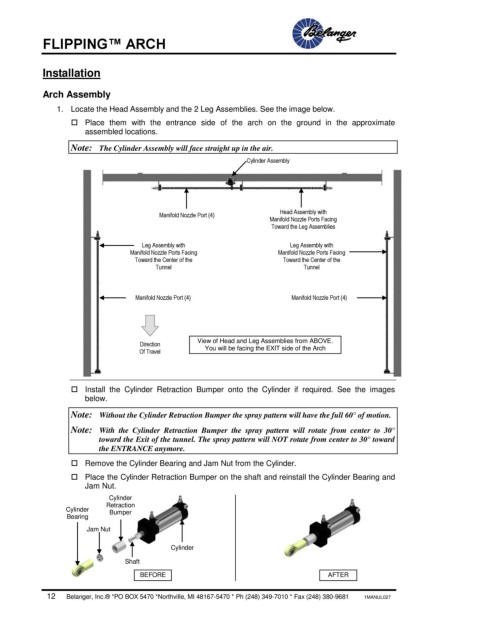

FLIPPING™ ARCH

Installation

Arch Assembly

1. Locate the Head Assembly and the 2 Leg Assemblies. See the image below.
 Place them with the entrance side of the arch on the ground in the approximate
assembled locations.

Note: The Cylinder Assembly will face straight up in the air.
Cylinder Assembly

Manifold Nozzle Port (4) Head Assembly with
Manifold Nozzle Ports Facing
Toward the Leg Assemblies
Leg Assembly with Leg Assembly with
Manifold Nozzle Ports Facing Manifold Nozzle Ports Facing
Toward the Center of the Toward the Center of the
Tunnel Tunnel

Manifold Nozzle Port (4) Manifold Nozzle Port (4)

Direction View of Head and Leg Assemblies from ABOVE.
Of Travel You will be facing the EXIT side of the Arch

 Install the Cylinder Retraction Bumper onto the Cylinder if required. See the images
below.

Note: Without the Cylinder Retraction Bumper the spray pattern will have the full 60° of motion.
Note: With the Cylinder Retraction Bumper the spray pattern will rotate from center to 30°
toward the Exit of the tunnel. The spray pattern will NOT rotate from center to 30° toward
the ENTRANCE anymore.
 Remove the Cylinder Bearing and Jam Nut from the Cylinder.
 Place the Cylinder Retraction Bumper on the shaft and reinstall the Cylinder Bearing and
Jam Nut.
Cylinder
Retraction
Cylinder Bumper
Bearing
Jam Nut

Cylinder

Shaft

BEFORE AFTER
