FLIPPING™ ARCH

Installation

Arch Assembly

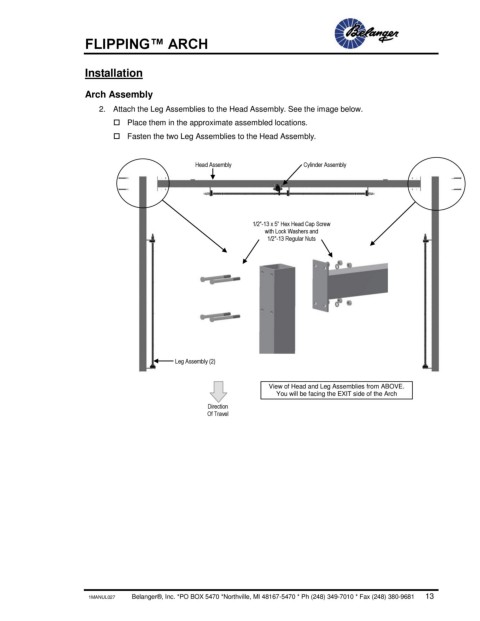

2. Attach the Leg Assemblies to the Head Assembly. See the image below.
 Place them in the approximate assembled locations.
 Fasten the two Leg Assemblies to the Head Assembly.

Head Assembly Cylinder Assembly

1/2"-13 x 5” Hex Head Cap Screw
with Lock Washers and
1/2"-13 Regular Nuts

Leg Assembly (2)

View of Head and Leg Assemblies from ABOVE.
You will be facing the EXIT side of the Arch

Direction
Of Travel

1MANUL027 Belanger®, Inc. *PO BOX 5470 *Northville, MI 48167-5470 * Ph (248) 349-7010 * Fax (248) 380-9681 13
