FLIPPING™ ARCH

Installation

Arch Assembly

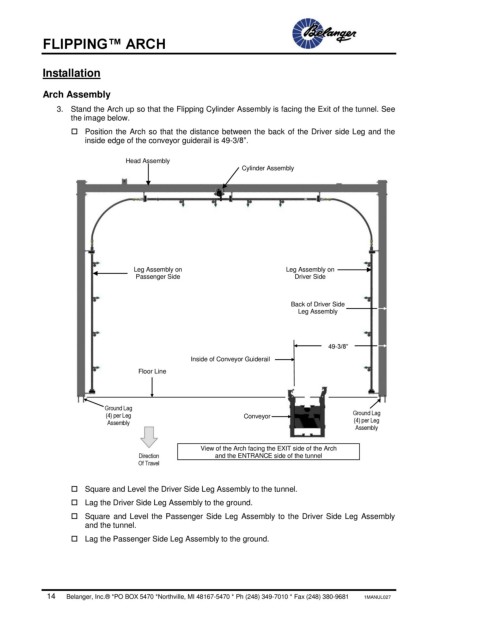

3. Stand the Arch up so that the Flipping Cylinder Assembly is facing the Exit of the tunnel. See
the image below.
 Position the Arch so that the distance between the back of the Driver side Leg and the
inside edge of the conveyor guiderail is 49-3/8”.

Head Assembly
Cylinder Assembly

Leg Assembly on Leg Assembly on
Passenger Side Driver Side

Back of Driver Side
Leg Assembly

49-3/8”
Inside of Conveyor Guiderail
Floor Line

Ground Lag
(4) per Leg Conveyor Ground Lag
Assembly (4) per Leg
Assembly

View of the Arch facing the EXIT side of the Arch
Direction and the ENTRANCE side of the tunnel
Of Travel

 Square and Level the Driver Side Leg Assembly to the tunnel.

 Lag the Driver Side Leg Assembly to the ground.
 Square and Level the Passenger Side Leg Assembly to the Driver Side Leg Assembly
and the tunnel.
 Lag the Passenger Side Leg Assembly to the ground.
