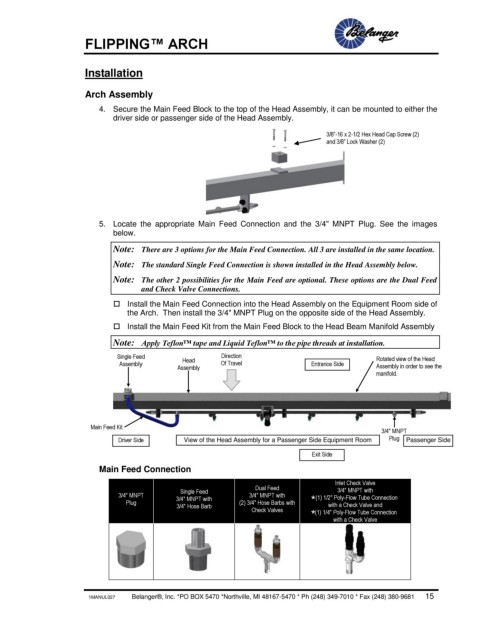

Page 17 - Flipping™ Arch

FLIPPING™ ARCH

Installation

Arch Assembly

4. Secure the Main Feed Block to the top of the Head Assembly, it can be mounted to either the
driver side or passenger side of the Head Assembly.

3/8”-16 x 2-1/2 Hex Head Cap Screw (2)
and 3/8” Lock Washer (2)

5. Locate the appropriate Main Feed Connection and the 3/4" MNPT Plug. See the images
below.

Note: There are 3 options for the Main Feed Connection. All 3 are installed in the same location.

Note: The standard Single Feed Connection is shown installed in the Head Assembly below.
Note: The other 2 possibilities for the Main Feed are optional. These options are the Dual Feed
and Check Valve Connections.

 Install the Main Feed Connection into the Head Assembly on the Equipment Room side of
the Arch. Then install the 3/4" MNPT Plug on the opposite side of the Head Assembly.
 Install the Main Feed Kit from the Main Feed Block to the Head Beam Manifold Assembly

Note: Apply Teflon™ tape and Liquid Teflon™ to the pipe threads at installation.
Single Feed Head Direction Rotated view of the Head

Assembly Assembly Of Travel Entrance Side Assembly in order to see the
manifold.

Main Feed Kit
3/4" MNPT
Driver Side View of the Head Assembly for a Passenger Side Equipment Room Plug Passenger Side
Exit Side
Main Feed Connection
Inlet Check Valve
Dual Feed
Single Feed 3/4" MNPT with
3/4" MNPT 3/4" MNPT with 3/4" MNPT with (1) 1/2" Poly-Flow Tube Connection
Plug (2) 3/4" Hose Barbs with *
3/4" Hose Barb with a Check Valve and
Check Valves
*
(1) 1/4" Poly-Flow Tube Connection
with a Check Valve
