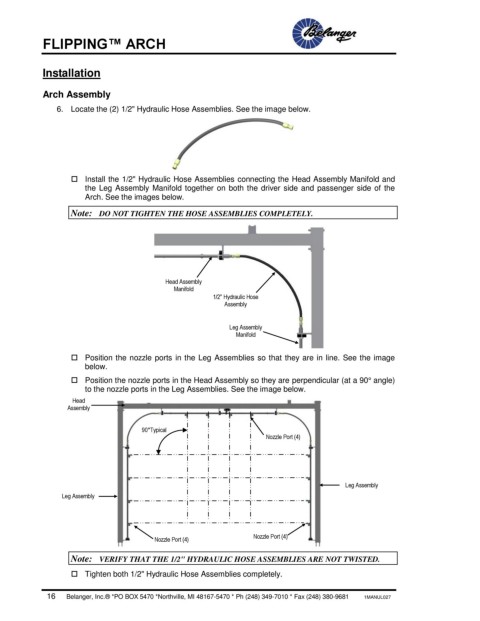

FLIPPING™ ARCH

Installation

Arch Assembly

6. Locate the (2) 1/2" Hydraulic Hose Assemblies. See the image below.

 Install the 1/2" Hydraulic Hose Assemblies connecting the Head Assembly Manifold and
the Leg Assembly Manifold together on both the driver side and passenger side of the
Arch. See the images below.
Note: DO NOT TIGHTEN THE HOSE ASSEMBLIES COMPLETELY.

Head Assembly
Manifold
1/2" Hydraulic Hose
Assembly

Leg Assembly
Manifold

 Position the nozzle ports in the Leg Assemblies so that they are in line. See the image
below.
 Position the nozzle ports in the Head Assembly so they are perpendicular (at a 90° angle)
to the nozzle ports in the Leg Assemblies. See the image below.
Head
Assembly

90°Typical
Nozzle Port (4)

Leg Assembly
Leg Assembly

Nozzle Port (4)
Nozzle Port (4)

Note: VERIFY THAT THE 1/2" HYDRAULIC HOSE ASSEMBLIES ARE NOT TWISTED.

 Tighten both 1/2" Hydraulic Hose Assemblies completely.
