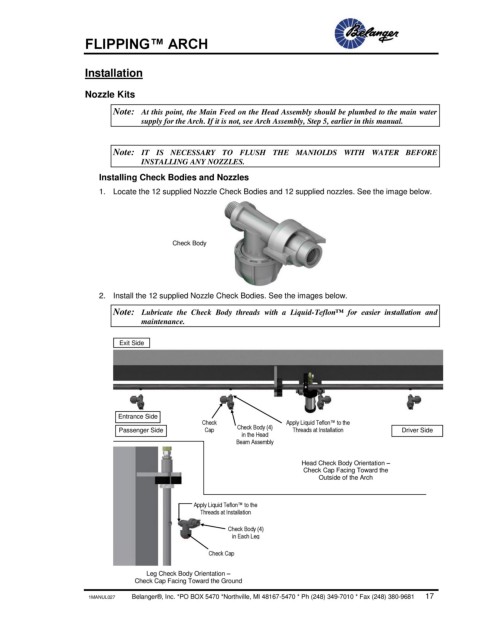

Page 19 - Flipping™ Arch

FLIPPING™ ARCH

Installation

Nozzle Kits

Note: At this point, the Main Feed on the Head Assembly should be plumbed to the main water
supply for the Arch. If it is not, see Arch Assembly, Step 5, earlier in this manual.

Note: IT IS NECESSARY TO FLUSH THE MANIOLDS WITH WATER BEFORE
INSTALLING ANY NOZZLES.

Installing Check Bodies and Nozzles
1. Locate the 12 supplied Nozzle Check Bodies and 12 supplied nozzles. See the image below.

Check Body

2. Install the 12 supplied Nozzle Check Bodies. See the images below.

Note: Lubricate the Check Body threads with a Liquid-Teflon™ for easier installation and
maintenance.

Exit Side

Entrance Side
Check Apply Liquid Teflon™ to the
Passenger Side Cap Check Body (4) Threads at Installation Driver Side
in the Head
Beam Assembly

Head Check Body Orientation –
Check Cap Facing Toward the
Outside of the Arch

Apply Liquid Teflon™ to the
Threads at Installation

Check Body (4)
in Each Leg

Check Cap

Leg Check Body Orientation –
Check Cap Facing Toward the Ground
