FLIPPING™ ARCH

Installation

Optional Rain Bar Installation

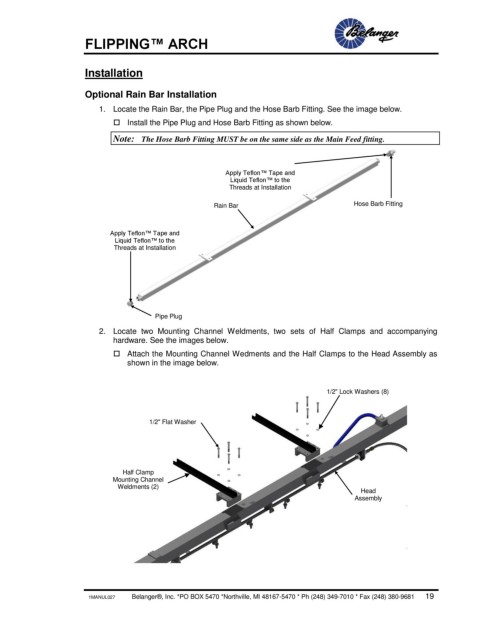

1. Locate the Rain Bar, the Pipe Plug and the Hose Barb Fitting. See the image below.
 Install the Pipe Plug and Hose Barb Fitting as shown below.

Note: The Hose Barb Fitting MUST be on the same side as the Main Feed fitting.

Apply Teflon™ Tape and
Liquid Teflon™ to the

Threads at Installation

Rain Bar Hose Barb Fitting

Apply Teflon™ Tape and
Liquid Teflon™ to the
Threads at Installation

Pipe Plug
2. Locate two Mounting Channel Weldments, two sets of Half Clamps and accompanying
hardware. See the images below.
 Attach the Mounting Channel Wedments and the Half Clamps to the Head Assembly as
shown in the image below.

1/2" Lock Washers (8)

1/2" Flat Washer
(8)

Half Clamp
Mounting Channel
Weldments (2)
Head
Assembly
