FLIPPING™ ARCH

Installation

Optional Rain Bar Installation

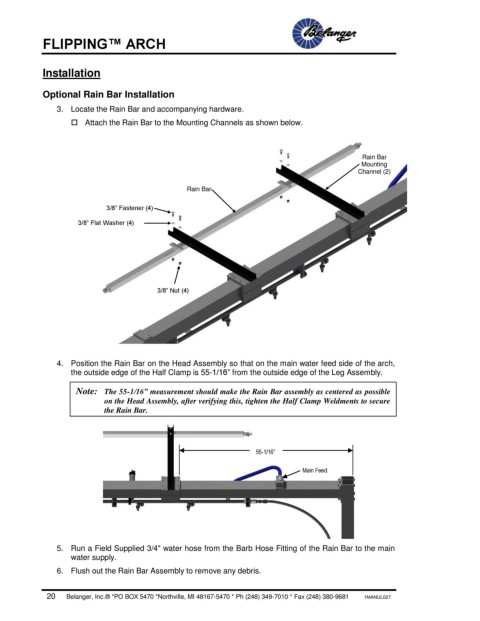

3. Locate the Rain Bar and accompanying hardware.
 Attach the Rain Bar to the Mounting Channels as shown below.

Rain Bar
Mounting
Channel (2)

Rain Bar

3/8” Fastener (4)
3/8” Flat Washer (4)

3/8” Nut (4)

4. Position the Rain Bar on the Head Assembly so that on the main water feed side of the arch,
the outside edge of the Half Clamp is 55-1/16” from the outside edge of the Leg Assembly.

Note: The 55-1/16” measurement should make the Rain Bar assembly as centered as possible
on the Head Assembly, after verifying this, tighten the Half Clamp Weldments to secure
the Rain Bar.

55-1/16”
Main Feed

5. Run a Field Supplied 3/4" water hose from the Barb Hose Fitting of the Rain Bar to the main
water supply.
6. Flush out the Rain Bar Assembly to remove any debris.
