FLIPPING™ ARCH

Installation

Utility Connections

Air

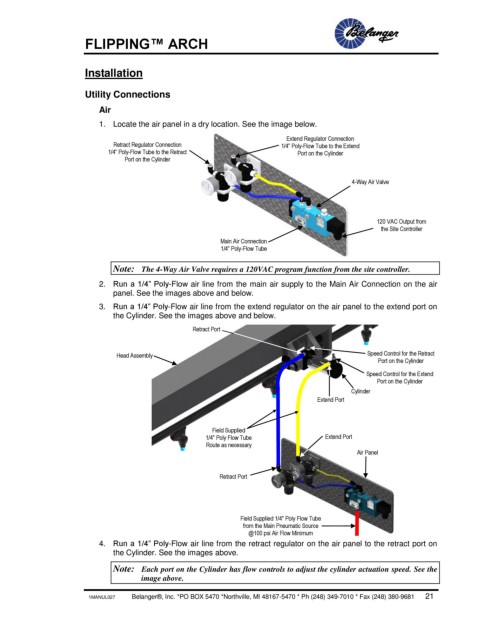

1. Locate the air panel in a dry location. See the image below.

Extend Regulator Connection
Retract Regulator Connection 1/4” Poly-Flow Tube to the Extend
1/4” Poly-Flow Tube to the Retract Port on the Cylinder
Port on the Cylinder

4-Way Air Valve

120 VAC Output from
the Site Controller
Main Air Connection
1/4” Poly-Flow Tube

Note: The 4-Way Air Valve requires a 120VAC program function from the site controller.

2. Run a 1/4” Poly-Flow air line from the main air supply to the Main Air Connection on the air
panel. See the images above and below.
3. Run a 1/4” Poly-Flow air line from the extend regulator on the air panel to the extend port on
the Cylinder. See the images above and below.
Retract Port

Head Assembly Speed Control for the Retract
Port on the Cylinder
Speed Control for the Extend
Port on the Cylinder
Cylinder
Extend Port

Field Supplied
1/4" Poly Flow Tube Extend Port
Route as necessary
Air Panel

Retract Port

Field Supplied 1/4" Poly Flow Tube
from the Main Pneumatic Source
@100 psi Air Flow Minimum
4. Run a 1/4” Poly-Flow air line from the retract regulator on the air panel to the retract port on

the Cylinder. See the images above.
Note: Each port on the Cylinder has flow controls to adjust the cylinder actuation speed. See the
image above.
