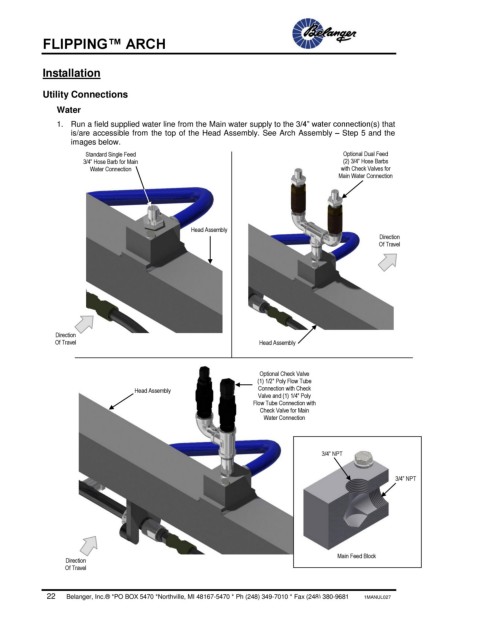

FLIPPING™ ARCH

Installation

Utility Connections

Water
1. Run a field supplied water line from the Main water supply to the 3/4” water connection(s) that
is/are accessible from the top of the Head Assembly. See Arch Assembly – Step 5 and the
images below.
Standard Single Feed Optional Dual Feed
3/4” Hose Barb for Main (2) 3/4” Hose Barbs
Water Connection with Check Valves for
Main Water Connection

Head Assembly
Direction
Of Travel

Direction
Of Travel Head Assembly

Optional Check Valve
(1) 1/2" Poly Flow Tube
Head Assembly Connection with Check
Valve and (1) 1/4" Poly
Flow Tube Connection with
Check Valve for Main
Water Connection

3/4” NPT

3/4” NPT

Direction Main Feed Block
Of Travel
