FLIPPING™ ARCH

Installation

Initial Start Up

1) Run water through the Flipping™ Arch and verify that there are no leaks in any of the
fittings or connections.
2) Actuate the 4-way valve on the air panel.
3) Verify that the Head Assembly Spray Manifold ROTATES correctly.

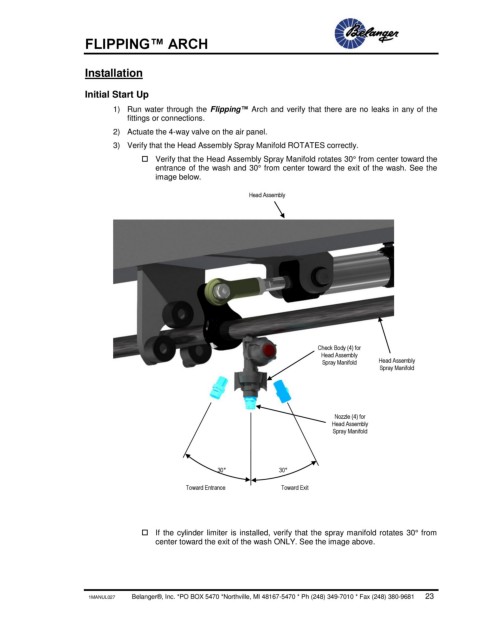

 Verify that the Head Assembly Spray Manifold rotates 30° from center toward the
entrance of the wash and 30° from center toward the exit of the wash. See the
image below.

Head Assembly

Check Body (4) for
Head Assembly
Spray Manifold Head Assembly
Spray Manifold

Nozzle (4) for
Head Assembly
Spray Manifold

30° 30°

Toward Entrance Toward Exit

 If the cylinder limiter is installed, verify that the spray manifold rotates 30° from
center toward the exit of the wash ONLY. See the image above.
