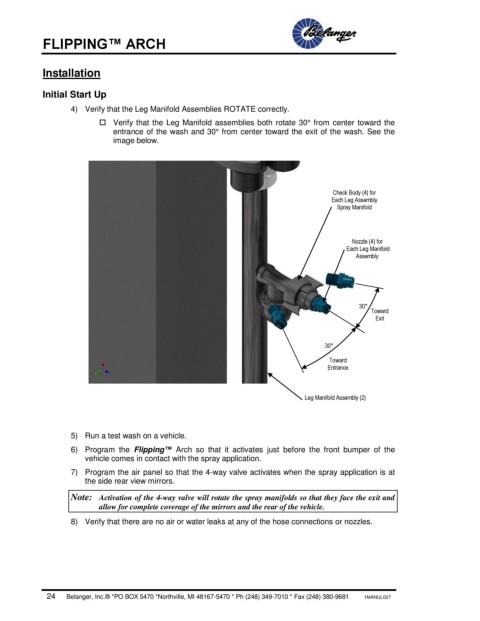

FLIPPING™ ARCH

Installation

Initial Start Up

4) Verify that the Leg Manifold Assemblies ROTATE correctly.
 Verify that the Leg Manifold assemblies both rotate 30° from center toward the
entrance of the wash and 30° from center toward the exit of the wash. See the
image below.

Check Body (4) for
Each Leg Assembly
Spray Manifold

Nozzle (4) for
Each Leg Manifold
Assembly

30°
Toward
Exit

30°

Toward
Entrance

Leg Manifold Assembly (2)

5) Run a test wash on a vehicle.
6) Program the Flipping™ Arch so that it activates just before the front bumper of the
vehicle comes in contact with the spray application.

7) Program the air panel so that the 4-way valve activates when the spray application is at
the side rear view mirrors.

Note: Activation of the 4-way valve will rotate the spray manifolds so that they face the exit and
allow for complete coverage of the mirrors and the rear of the vehicle.
8) Verify that there are no air or water leaks at any of the hose connections or nozzles.
