FLIPPING™ ARCH
Maintenance
Replacement Parts

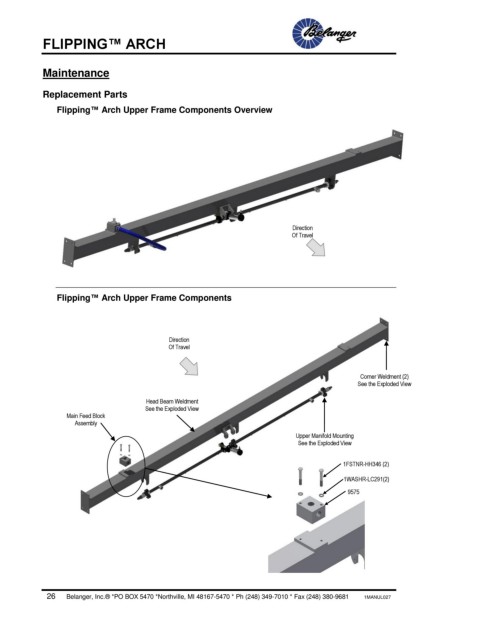

Flipping™ Arch Upper Frame Components Overview
Direction
Of Travel
Flipping™ Arch Upper Frame Components
Direction
Of Travel
Corner Weldment (2)
See the Exploded View
Head Beam Weldment
See the Exploded View
Main Feed Block
Assembly
Upper Manifold Mounting
See the Exploded View
1FSTNR-HH346 (2)
1WASHR-LC291(2)
