FLIPPING™ ARCH

Maintenance

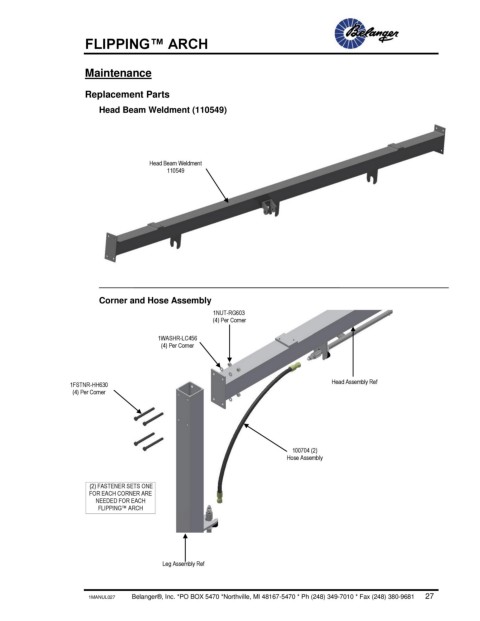

Replacement Parts

Head Beam Weldment (110549)

Head Beam Weldment
110549

Corner and Hose Assembly
1NUT-RG603
(4) Per Corner

1WASHR-LC456
(4) Per Corner

1FSTNR-HH630 Head Assembly Ref
(4) Per Corner

100704 (2)
Hose Assembly

(2) FASTENER SETS ONE
FOR EACH CORNER ARE
NEEDED FOR EACH
FLIPPING™ ARCH

Leg Assembly Ref

1MANUL027 Belanger®, Inc. *PO BOX 5470 *Northville, MI 48167-5470 * Ph (248) 349-7010 * Fax (248) 380-9681 27
